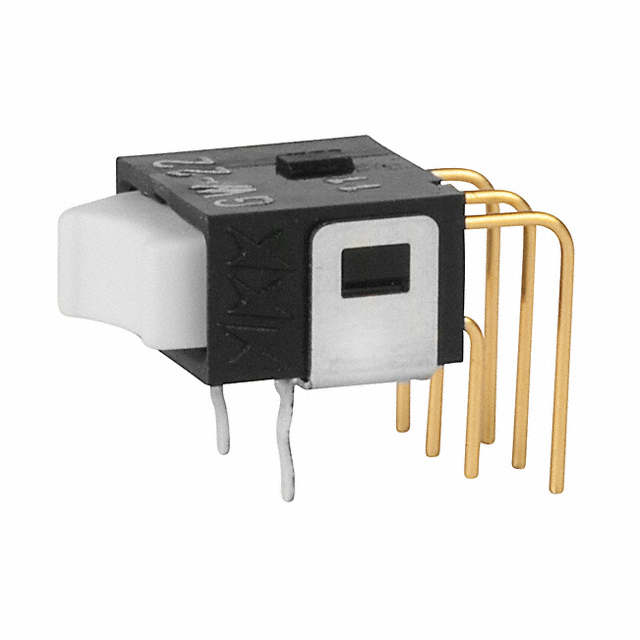

GW22RBH

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS CURVED ROCKER 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS CURVED ROCKER 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination Style	Mounting Type	Electrical Life	Features	Actuator Marking	Circuit	Actuator Type	Voltage Rating - DC
NKK Switches GW22RBV	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Right Angle Through Hole Vertical	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V
NKK Switches GW22RBH	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Through Hole Right Angle	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V
NKK Switches GW22RBP	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Through Hole	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle
