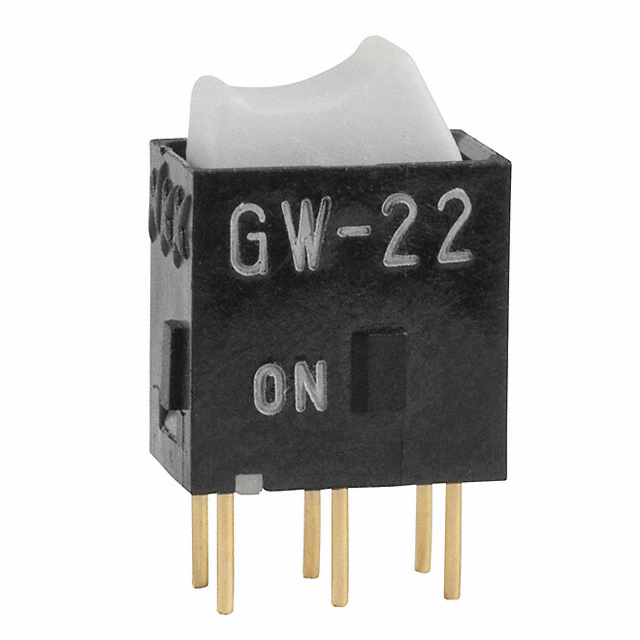

GW22RBP

Active

NKK Switches

ROCKER SWITCH, NON ILLUMINATED, DPDT, ON-NONE-ON, WHITE, THROUGH HOLE, 100 MA

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, NON ILLUMINATED, DPDT, ON-NONE-ON, WHITE, THROUGH HOLE, 100 MA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination Style	Mounting Type	Electrical Life	Features	Actuator Marking	Circuit	Actuator Type	Voltage Rating - DC
NKK Switches GW22RBV	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Right Angle Through Hole Vertical	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V
NKK Switches GW22RBH	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Through Hole Right Angle	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V
NKK Switches GW22RBP	28 V	On-On	0.4 VA	White	-30 ░C	85 °C	CSA UL	PC Pin	Through Hole	50000 Cycles	Sealed - Flux Protection	No Marking	DPDT	Concave (Curved)	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole
