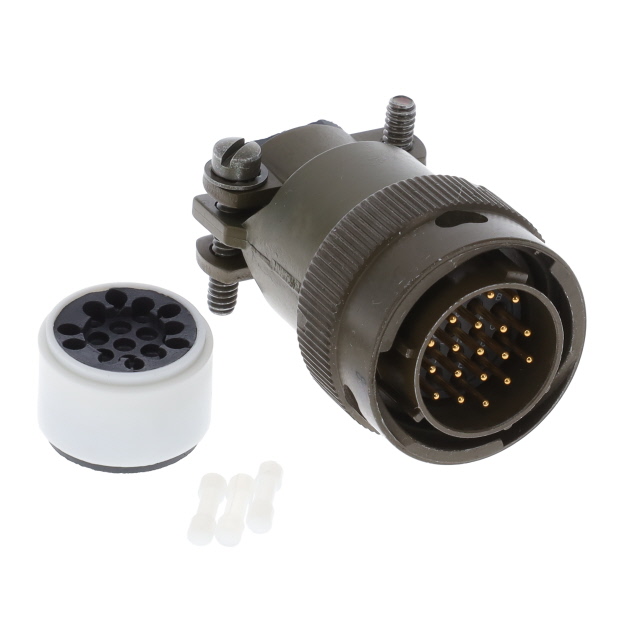

MS3116F14-18P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 18 CONTACTS, SOLDER PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3116F14-18P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 18 CONTACTS, SOLDER PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116F14-18P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	18
Shell Size - Insert [Min]	14
Voltage Rating	600 VAC, 850 V

MS3116F14 Series

Part	Current Rating (Amps)	Fastening Type	Primary Material	Shell Material	Voltage Rating	Orientation	Contact Finish - Mating	Features	Connector Type	Mounting Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
ITT Cannon, LLC MS3116F14-15P	7.5 A 13 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)	14	15	Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	15	1.27 µm	50 µin
ITT Cannon, LLC MS3116F14-18P	7.5 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)	14	18	Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	18	1.27 µm	50 µin
ITT Cannon, LLC MS3116F14-12P	7.5 A 13 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)			Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	12	1.27 µm	50 µin	14-12
ITT Cannon, LLC MS3116F14-19PW	7.5 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	W	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)			Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	19	1.27 µm	50 µin		19	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.48
		10	$ 65.59
		25	$ 63.07
		50	$ 60.97
		100	$ 57.60
Newark	Each	1	$ 76.51
		5	$ 70.77
		10	$ 65.04
		25	$ 60.96
		50	$ 58.06
		100	$ 55.30

Description

General part information

MS3116F14 Series

The MS3116F14-18P from ITT Cannon is MIL-DTL-26482 series I straight plug with 18 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
