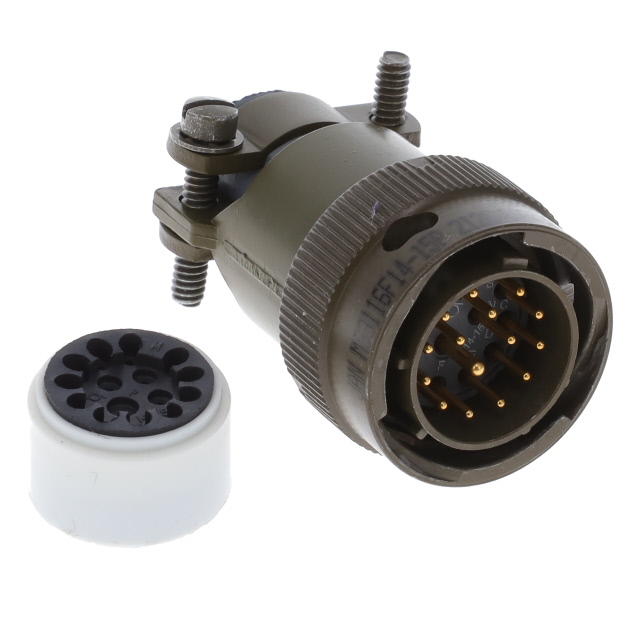

MS3116F14-15P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 15 CONTACTS, SOLDER PIN

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 15 CONTACTS, SOLDER PIN

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116F14-15P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	15
Shell Size - Insert [Min]	14
Voltage Rating	600 VAC, 850 V

Part	Current Rating (Amps)	Fastening Type	Primary Material	Shell Material	Voltage Rating	Orientation	Contact Finish - Mating	Features	Connector Type	Mounting Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
ITT Cannon, LLC MS3116F14-15P	7.5 A 13 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)	14	15	Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	15	1.27 µm	50 µin
ITT Cannon, LLC MS3116F14-18P	7.5 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)	14	18	Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	18	1.27 µm	50 µin
ITT Cannon, LLC MS3116F14-12P	7.5 A 13 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	N	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)			Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	12	1.27 µm	50 µin	14-12
ITT Cannon, LLC MS3116F14-19PW	7.5 A	Bayonet Lock	Metal	Aluminum Alloy	600 VAC 850 V	W	Gold	Strain Relief	Male Pins Plug	Free Hanging (In-Line)			Olive Drab	Olive Drab Cadmium	-55 °C	125 °C	Environment Resistant	19	1.27 µm	50 µin		19	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Circular Connector Plug, Male Pins Solder Cup
