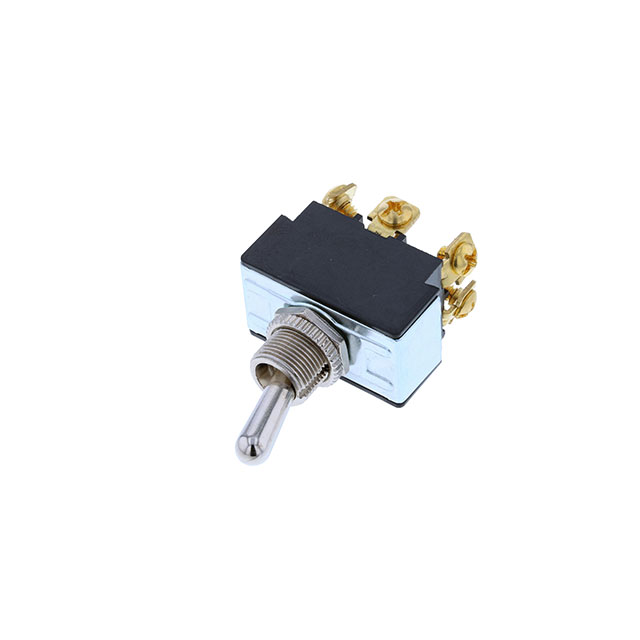

TB1-2F-AC-5

Active

Switch Components

VAC DPDT ON-OFF-ON, SOLD, 15/32

Search across all available documentation for this part.

Active

Switch Components

VAC DPDT ON-OFF-ON, SOLD, 15/32

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TB1-2F-AC-5	TB1-2F Series

Actuator Length [x]	16.5 mm	16.5 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 - 21 A
Electrical Life	-	6000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.2 mm	12 - 12.2 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Solder Lug	Screw Terminal, Quick Connect - 0.250" (6.3mm), Solder Lug
Voltage Rating - AC	250 V	125 - 250 V
Voltage Rating - DC	-	14 V

VAC DPDT ON-OFF-ON, SCREW, 15/32

Part	Switch Function	Circuit	Illumination	Bushing Thread	Actuator Length [x]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Actuator Type	Electrical Life	Voltage Rating - DC
Switch Components TB1-2F-AC-6	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	10 A	12.2 mm	Screw Terminal	250 V	Standard Round
Switch Components TB1-2F-DC-1	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	20 A, 21 A	12 mm	Quick Connect - 0.250" (6.3mm)	125 V	Standard Round	6000 Cycles	14 V
Switch Components TB1-2F-AC-1	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	10 A	12.2 mm	Quick Connect - 0.250" (6.3mm)	250 V	Standard Round
Switch Components TB1-2F-AC-5	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	10 A	12.2 mm	Solder Lug	250 V	Standard Round
Switch Components TB1-2F-DC-5	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	20 A, 21 A	12 mm	Solder Lug	125 V	Standard Round	6000 Cycles	14 V
Switch Components TB1-2F-DC-6	On-Off-On	DPDT	Non-Illuminated	15/32-32	16.5 mm	20 A, 21 A	12 mm	Screw Terminal	125 V	Standard Round	6000 Cycles	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch DPDT Panel Mount
