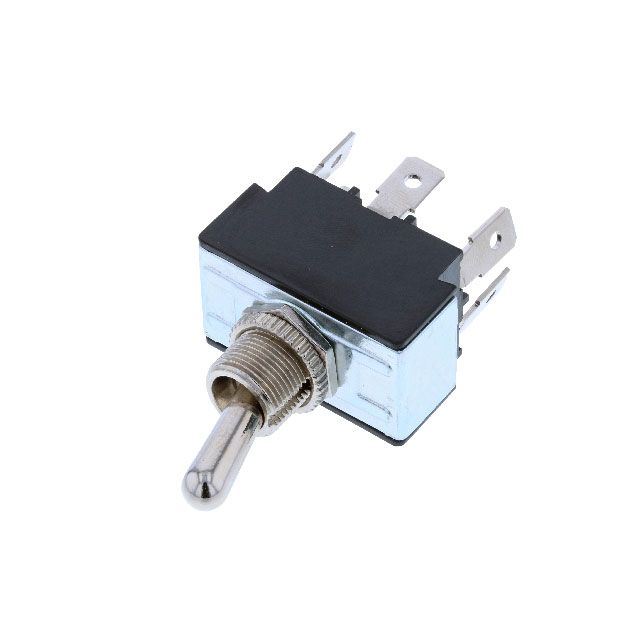

TB1-2F-DC-1

Active

Switch Components

SWITCH TOGGLE DPDT 20A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	TB1-2F-DC-1

Actuator Length [x]	16.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	21 A, 20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Actuator Length [x]	Circuit	Illumination	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC	Switch Function	Actuator Type	Bushing Thread	Current Rating (Amps)	Electrical Life	Voltage Rating - DC
Switch Components TB1-2F-AC-1	16.5 mm	DPDT	Non-Illuminated	12.2 mm	Quick Connect - 0.250" (6.3mm)	250 V	On-Off-On	Standard Round	15/32-32	10 A
Switch Components TB1-2F-AC-6	16.5 mm	DPDT	Non-Illuminated	12.2 mm	Screw Terminal	250 V	On-Off-On	Standard Round	15/32-32	10 A
Switch Components TB1-2F-DC-1	16.5 mm	DPDT	Non-Illuminated	12 mm	Quick Connect - 0.250" (6.3mm)	125 V	On-Off-On	Standard Round	15/32-32	20 A 21 A	6000 Cycles	14 V
Switch Components TB1-2F-DC-6	16.5 mm	DPDT	Non-Illuminated	12 mm	Screw Terminal	125 V	On-Off-On	Standard Round	15/32-32	20 A 21 A	6000 Cycles	14 V
Switch Components TB1-2F-DC-5	16.5 mm	DPDT	Non-Illuminated	12 mm	Solder Lug	125 V	On-Off-On	Standard Round	15/32-32	20 A 21 A	6000 Cycles	14 V
Switch Components TB1-2F-AC-5	16.5 mm	DPDT	Non-Illuminated	12.2 mm	Solder Lug	250 V	On-Off-On	Standard Round	15/32-32	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
