172313
ActiveAmphenol RF

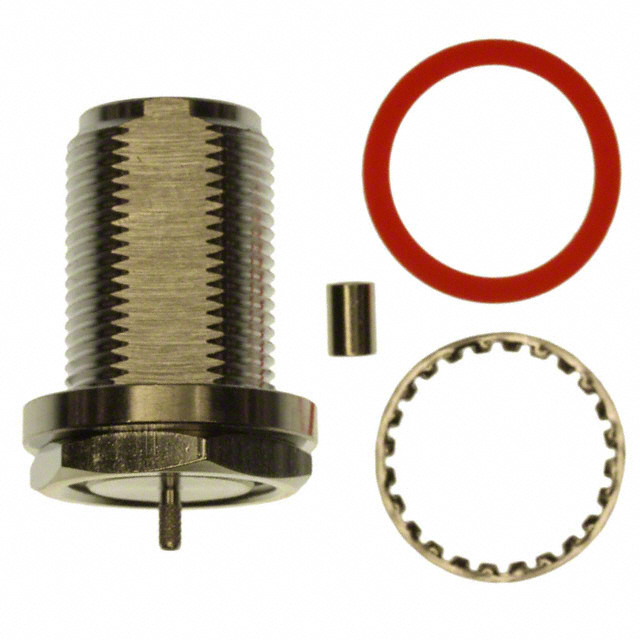

CONNECTOR: N; SOCKET; FEMALE; STRAIGHT; 50Ω; SOLDERING,CRIMPED
Deep-Dive with AI
Search across all available documentation for this part.
172313
ActiveAmphenol RF
CONNECTOR: N; SOCKET; FEMALE; STRAIGHT; 50Ω; SOLDERING,CRIMPED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172313 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | 178B, RG-178, 196A, M17/93-RG178, 196, 178A |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder, Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector |
| Ingress Protection | Weatherproof |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
1723 Series
| Part | Mounting Type | Cable Group | Voltage Rating | Housing Color | Body Material | Frequency - Max [Max] | Shield Termination | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Center Contact Plating | Number of Ports | Insertion Loss | Impedance | Dielectric Material | Connector Style | Center Contact Material | Contact Termination | Includes | Mating Cycles | Cable Group | Mounting Feature | Ingress Protection | Features | Conversion Type | Style | Adapter Type | Convert To (Adapter End) | Convert From (Adapter End) | Center Gender | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Free Hanging (In-Line) | LMR-240 | 1500 V | Silver | Brass | 6000 MHz | Crimp | White Bronze | -65 ░C | 165 °C | Female Socket Jack | Gold | 1 | 0.15 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Phosphor Bronze | Crimp Solder | 1 Connector 1 Contact 1 Ferrule 1 Insulator | 500 | |||||||||||
Amphenol RF | RG-401 | 1500 V | Silver | Brass | 11 GHz | Solder | Nickel | -65 ░C | 165 °C | Female Socket Jack | Gold | 1 | 0.15 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Phosphor Bronze | Crimp Solder | 1 Connector 1 Contact 1 Insulator 1 Nut | 500 | 0.25 in | Flange | ||||||||||
Amphenol RF | 1500 V | Silver | Brass | 11 GHz | Solder | White Bronze | -65 ░C | 165 °C | Male Pin Plug | Gold | 1 | 0.15 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Brass | Crimp Solder | Connector Contact Insulator | 500 | Flange | Weatherproof | |||||||||||
Amphenol RF | Free Hanging (In-Line) | LMR-240 | 1500 V | Silver | Brass | 11 GHz | Crimp | White Bronze | -65 ░C | 165 °C | Male Pin Plug | Gold | 1 | 0.15 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Brass | Crimp Solder | 1 Connector 1 Contact 1 Ferrule 1 Insulator | 500 | Weatherproof | ||||||||||
Amphenol RF | Free Hanging (In-Line) | Brass | 6000 MHz | White Bronze | -55 °C | 155 °C | Silver | 50 Ohms | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 500 | IP67 - Dust Tight Waterproof | Low PIM | Same Series | Straight | Jack to Jack | Female Socket N Jack | Female Socket N Jack | Female to Female | N to N | ||||||||||||
Amphenol RF | LMR-240 | 1500 V | Silver | Brass | 6000 MHz | Crimp | White Bronze | -65 ░C | 165 °C | Female Socket Jack | Gold | 1 | 0.3 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Phosphor Bronze | Crimp | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut | 500 | Bulkhead - Front Side Nut | Weatherproof | ||||||||||
Amphenol RF | 178A 178B 196 196A M17/93-RG178 RG-178 | Silver | Brass | 6000 MHz | Crimp | White Bronze | -65 ░C | 165 °C | Female Socket Jack | Gold | 1 | 0.15 dB | 50 Ohms | Polytetrafluoroethylene (PTFE) | N Type | Phosphor Bronze | Crimp Solder | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | 500 | Bulkhead - Front Side Nut | Weatherproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1723 Series
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder
