172395

Active

Amphenol RF

RF / COAXIAL CONNECTOR, LOW SIGNAL LOSS, N TYPE, STRAIGHT PLUG, CRIMP, 50 OHM, LMR-240, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

172395

Active

Amphenol RF

RF / COAXIAL CONNECTOR, LOW SIGNAL LOSS, N TYPE, STRAIGHT PLUG, CRIMP, 50 OHM, LMR-240, BRASS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172395

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

1723 Series

Part	Mounting Type	Cable Group	Voltage Rating	Housing Color	Body Material	Frequency - Max [Max]	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Plating	Number of Ports	Insertion Loss	Impedance	Dielectric Material	Connector Style	Center Contact Material	Contact Termination	Includes	Mating Cycles	Cable Group	Mounting Feature	Ingress Protection	Features	Conversion Type	Style	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Center Gender	Adapter Series
Amphenol RF 172394	Free Hanging (In-Line)	LMR-240	1500 V	Silver	Brass	6000 MHz	Crimp	White Bronze	-65 ░C	165 °C	Female Socket Jack	Gold	1	0.15 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Phosphor Bronze	Crimp Solder	1 Connector 1 Contact 1 Ferrule 1 Insulator	500
Amphenol RF 172300		RG-401	1500 V	Silver	Brass	11 GHz	Solder	Nickel	-65 ░C	165 °C	Female Socket Jack	Gold	1	0.15 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Phosphor Bronze	Crimp Solder	1 Connector 1 Contact 1 Insulator 1 Nut	500	0.25 in	Flange
Amphenol RF 172309			1500 V	Silver	Brass	11 GHz	Solder	White Bronze	-65 ░C	165 °C	Male Pin Plug	Gold	1	0.15 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Brass	Crimp Solder	Connector Contact Insulator	500		Flange	Weatherproof
Amphenol RF 172395	Free Hanging (In-Line)	LMR-240	1500 V	Silver	Brass	11 GHz	Crimp	White Bronze	-65 ░C	165 °C	Male Pin Plug	Gold	1	0.15 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Brass	Crimp Solder	1 Connector 1 Contact 1 Ferrule 1 Insulator	500			Weatherproof
Amphenol RF 172370	Free Hanging (In-Line)				Brass	6000 MHz		White Bronze	-55 °C	155 °C		Silver			50 Ohms	Polytetrafluoroethylene (PTFE)		Beryllium Copper			500			IP67 - Dust Tight Waterproof	Low PIM	Same Series	Straight	Jack to Jack	Female Socket N Jack	Female Socket N Jack	Female to Female	N to N
Amphenol RF 172386		LMR-240	1500 V	Silver	Brass	6000 MHz	Crimp	White Bronze	-65 ░C	165 °C	Female Socket Jack	Gold	1	0.3 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Phosphor Bronze	Crimp	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Insulator 1 Lockwasher 1 Nut	500		Bulkhead - Front Side Nut	Weatherproof
Amphenol RF 172313		178A 178B 196 196A M17/93-RG178 RG-178		Silver	Brass	6000 MHz	Crimp	White Bronze	-65 ░C	165 °C	Female Socket Jack	Gold	1	0.15 dB	50 Ohms	Polytetrafluoroethylene (PTFE)	N Type	Phosphor Bronze	Crimp Solder	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	500		Bulkhead - Front Side Nut	Weatherproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.36
		10	$ 17.82
		25	$ 17.05
		50	$ 16.50
		100	$ 15.95
		300	$ 15.07
		500	$ 14.63
Newark	Each	1	$ 24.78
		5	$ 23.98
		10	$ 22.72
		25	$ 21.92
		50	$ 20.67
		100	$ 20.10
		250	$ 19.18

Description

General part information

1723 Series

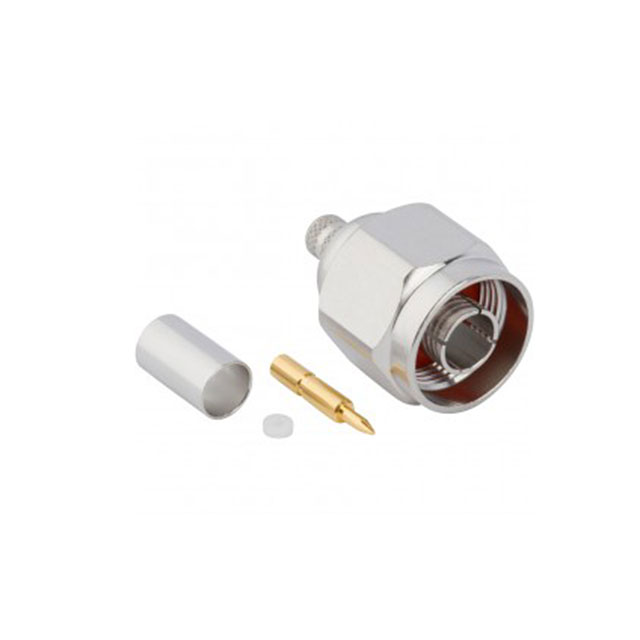

The 172395 from Amphenol RF is a N type Straight Crimp Plug for use with low loss LMR-240 RF coaxial cables. It has white bronze-plated brass body with gold-plated brass contacts and a natural PTFE insulator. This connector features a nominal impedance of 50 ohms and offers low return loss from DC to 6 GHz. Provides consistent electrical performance at high frequencies and improved grounding for more stable RF performance. Termination is crimp cable and contact, allowing for quick and secure assembly.
