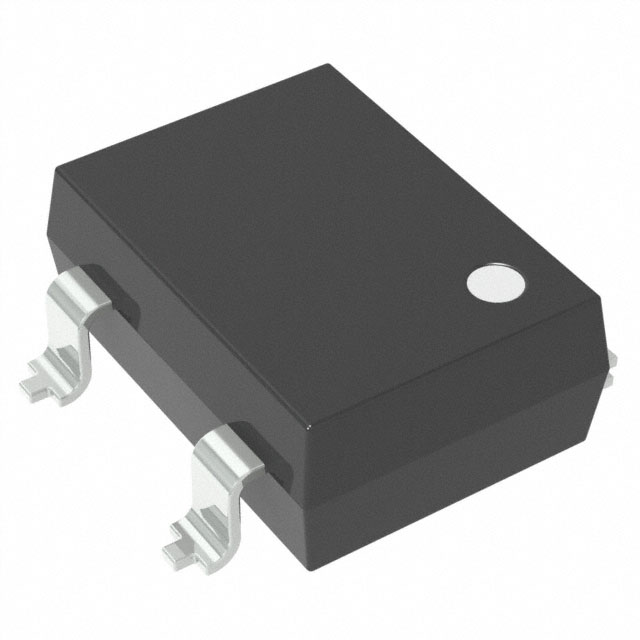

APT1232AZ

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

Search across all available documentation for this part.

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	APT1232AZ

Approval Agency	cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	5-SMD, Gull Wing
Static dV/dt (Min) [Min]	500 V/µs
Supplier Device Package	6-DIP Gull Wing
Turn On Time	100 µs
Voltage - Forward (Vf) (Typ)	1.21 V
Voltage - Off State	600 V
Zero Crossing Circuit	True

Part	Number of Channels	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - LED Trigger (Ift) (Max) [Max]	Package / Case	Current - Hold (Ih)	Output Type	Approval Agency	Current - On State (It (RMS)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Mounting Type	Static dV/dt (Min) [Min]	Turn On Time	Current - DC Forward (If) (Max)
Panasonic Electric Works APT1232WA	1	1.21 V	6-DIP Gull Wing	10 mA	6-SMD (5 Leads) Gull Wing	3.5 mA	Triac	cUR VDE	100 mA	100 °C	-40 °C	600 V	Surface Mount	500 V/µs	100 µs	50 mA
Panasonic Electric Works APT1232A	1	1.21 V	6-DIP Gull Wing	10 mA	6-SMD (5 Leads) Gull Wing	3.5 mA	Triac	cUR VDE	100 mA	100 °C	-40 °C	600 V	Surface Mount	500 V/µs	100 µs	50 mA
Panasonic Electric Works APT1232AZ	1	1.21 V	6-DIP Gull Wing	10 mA	5-SMD Gull Wing	3.5 mA	Triac	cUR VDE	100 mA	100 °C	-40 °C	600 V	Surface Mount	500 V/µs	100 µs	50 mA
Panasonic Electric Works APT1232AX	1	1.21 V	6-DIP Gull Wing	10 mA	6-SMD (5 Leads) Gull Wing	3.5 mA	Triac	cUR VDE	100 mA	100 °C	-40 °C	600 V	Surface Mount	500 V/µs	100 µs	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.99

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP Gull Wing
