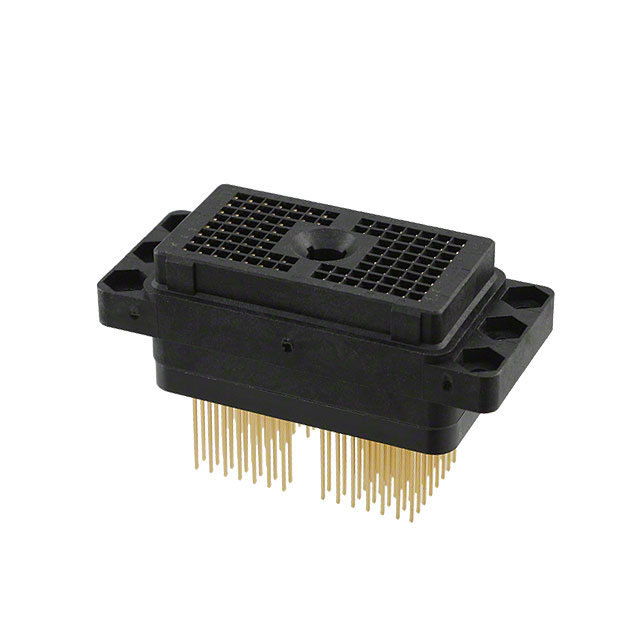

DL2-96RW-4B

Active

ITT Cannon, LLC

CONN RCPT 96POS PNL MNT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT 96POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DL2-96RW-4B

Color	Black
Connector Type	Hermaphroditic Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Zero Insertion Force (ZIF), Actuating Camshaft Socket
Material Flammability Rating	UL94 V-1
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Wire Wrap

Part	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Features	Connector Type	Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions Loaded	Number of Rows	Connector Usage	Note
ITT Cannon, LLC DL2-96RW-4B	UL94 V-1	50 µin	1.27 µm	2.54 mm	0.1 in	Gold	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Hermaphroditic Contacts Receptacle	Wire Wrap	Black	105 ░C	-55 °C	96	All	8
ITT Cannon, LLC DL2-96R				2.54 mm	0.1 in		Actuating Camshaft Socket Zero Insertion Force (ZIF)	Housing for Non-Gendered Contacts		Black			96		8	Receptacle	Contacts Not Included
ITT Cannon, LLC DL2-96RW6B	UL94 V-1	50 µin	1.27 µm	2.54 mm	0.1 in	Gold	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Hermaphroditic Contacts Receptacle	Solder	Black	105 ░C	-55 °C	96	All	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Connector Receptacle, Hermaphroditic Contacts Panel Mount Black
