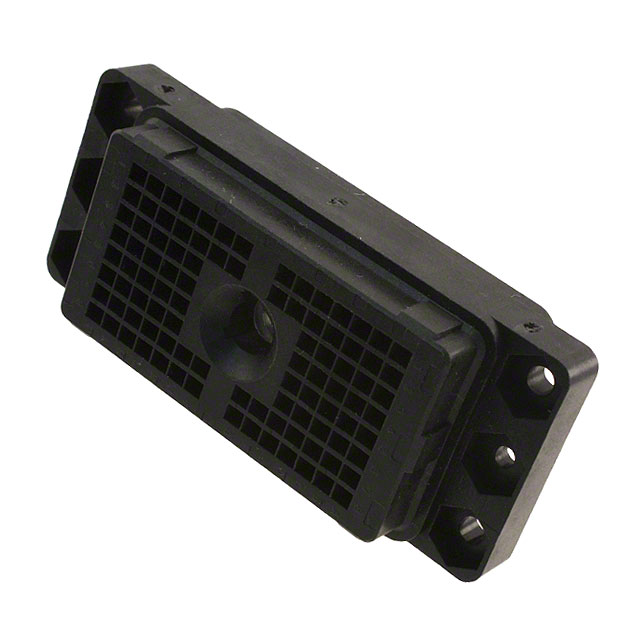

DL2-96R
ActiveITT Cannon, LLC
CONNECTOR, ITT CANNON DL SERIES, 96 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 8 ROWS
Deep-Dive with AI
Search across all available documentation for this part.
DL2-96R
ActiveITT Cannon, LLC
CONNECTOR, ITT CANNON DL SERIES, 96 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 8 ROWS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DL2-96R |
|---|---|
| Color | Black |
| Connector Type | Housing for Non-Gendered Contacts |
| Connector Usage | Receptacle |
| Features | Zero Insertion Force (ZIF), Actuating Camshaft Socket |
| Note | Contacts Not Included |
| Number of Positions | 96 |
| Number of Rows | 8 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.79 | |
| 10 | $ 18.01 | |||
| 25 | $ 17.07 | |||
| 50 | $ 16.83 | |||
| 100 | $ 14.85 | |||
| 250 | $ 13.86 | |||
| 500 | $ 13.56 | |||
Description
General part information
DL2 Series
The DL2-96R is a 96-contact Rectangular Receptacle with gold-plated copper contacts and plastic body. The 086-0031-000 rectangular power connector features crimp termination.
