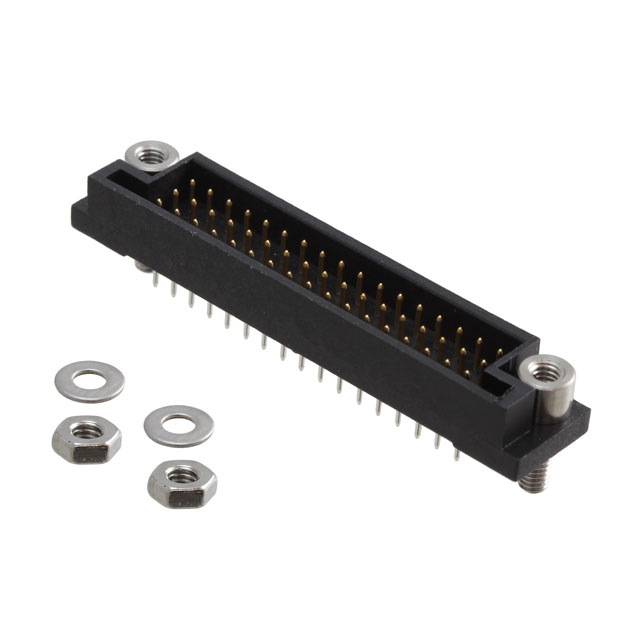

M80-7005142

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 51 CONTACTS, THROUGH HOLE

Deep-Dive with AI

DocumentsM80-001 M80-7xx Datamate Connectors +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-7005142

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height	0.244 in
Insulation Height	6.2 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	51
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-700 Series

Part	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Material	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Shrouding	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Style	Voltage Rating
Harwin Inc. M80-7003642	Solder	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	36	UL94 V-0	Gold	Shrouded - 4 Wall	3	All	Tin	0.244 in	6.2 mm	0.118 in	3 mm	0.079 in	2 mm	Male Pin	Circular	Through Hole	3 µm	118.1 µin	Black	Mating Flange Mounting Flange Mounting Hardware	-55 °C	125 °C	Header	29.5 Áin	0.75 Ám	2.2 A	Board to Board Cable	120 VDC
Harwin Inc. M80-7004542	Solder	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	45	UL94 V-0	Gold	Shrouded - 4 Wall	3	All	Tin	0.244 in	6.2 mm	0.118 in	3 mm	0.079 in	2 mm	Male Pin	Circular	Through Hole	3 µm	118.1 µin	Black	Mating Flange Mounting Flange Mounting Hardware	-55 °C	125 °C	Header	29.5 Áin	0.75 Ám	2.2 A	Board to Board Cable	120 VDC
Harwin Inc. M80-7004505	Solder	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	45	UL94 V-0	Gold	Shrouded - 4 Wall	3	All	Gold	0.244 in	6.2 mm	0.118 in	3 mm	0.079 in	2 mm	Male Pin	Circular	Through Hole	0.25 çm	10 çin	Black	Mating Flange Mounting Flange Mounting Hardware	-55 °C	125 °C	Header	10 çin	0.25 çm	2.2 A	Board to Board Cable	120 VDC
Harwin Inc. M80-7005142	Solder	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	51	UL94 V-0	Gold	Shrouded - 4 Wall	3	All	Tin	0.244 in	6.2 mm	0.118 in	3 mm	0.079 in	2 mm	Male Pin	Circular	Through Hole	3 µm	118.1 µin	Black	Mating Flange Mounting Flange Mounting Hardware	-55 °C	125 °C	Header	29.5 Áin	0.75 Ám	2.2 A	Board to Board Cable	120 VDC
