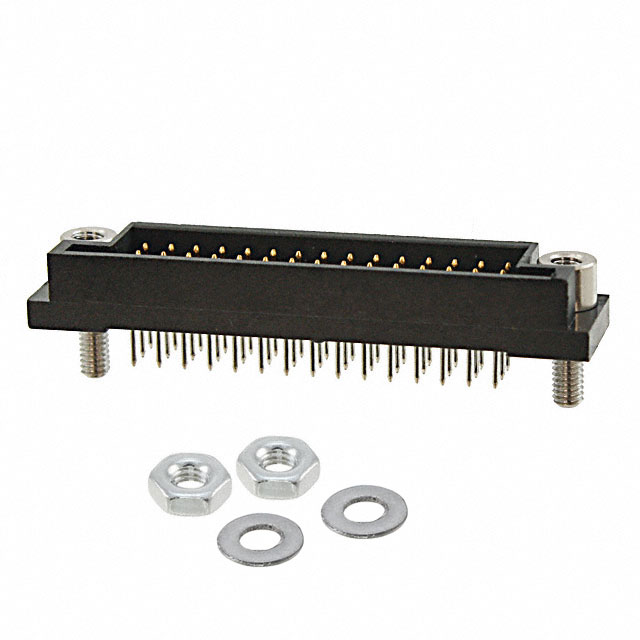

M80-7004542
ActiveHarwin Inc.
PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 45 CONTACTS, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
M80-7004542
ActiveHarwin Inc.
PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 45 CONTACTS, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-7004542 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware |
| Insulation Color | Black |
| Insulation Height | 0.244 in |
| Insulation Height | 6.2 mm |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 45 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-700 Series
| Part | Termination | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Material | Number of Positions | Material Flammability Rating | Contact Finish - Mating | Shrouding | Number of Rows | Number of Positions Loaded | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Contact Shape | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Solder | 0.079 in | 2 mm | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | 36 | UL94 V-0 | Gold | Shrouded - 4 Wall | 3 | All | Tin | 0.244 in | 6.2 mm | 0.118 in | 3 mm | 0.079 in | 2 mm | Male Pin | Circular | Through Hole | 3 µm | 118.1 µin | Black | Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | Header | 29.5 Áin | 0.75 Ám | 2.2 A | Board to Board Cable | 120 VDC |
Harwin Inc. | Solder | 0.079 in | 2 mm | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | 45 | UL94 V-0 | Gold | Shrouded - 4 Wall | 3 | All | Tin | 0.244 in | 6.2 mm | 0.118 in | 3 mm | 0.079 in | 2 mm | Male Pin | Circular | Through Hole | 3 µm | 118.1 µin | Black | Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | Header | 29.5 Áin | 0.75 Ám | 2.2 A | Board to Board Cable | 120 VDC |
Harwin Inc. | Solder | 0.079 in | 2 mm | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | 45 | UL94 V-0 | Gold | Shrouded - 4 Wall | 3 | All | Gold | 0.244 in | 6.2 mm | 0.118 in | 3 mm | 0.079 in | 2 mm | Male Pin | Circular | Through Hole | 0.25 çm | 10 çin | Black | Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | Header | 10 çin | 0.25 çm | 2.2 A | Board to Board Cable | 120 VDC |
Harwin Inc. | Solder | 0.079 in | 2 mm | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | 51 | UL94 V-0 | Gold | Shrouded - 4 Wall | 3 | All | Tin | 0.244 in | 6.2 mm | 0.118 in | 3 mm | 0.079 in | 2 mm | Male Pin | Circular | Through Hole | 3 µm | 118.1 µin | Black | Mating Flange Mounting Flange Mounting Hardware | -55 °C | 125 °C | Header | 29.5 Áin | 0.75 Ám | 2.2 A | Board to Board Cable | 120 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-700 Series
Connector Header Through Hole 45 position 0.079" (2.00mm)
