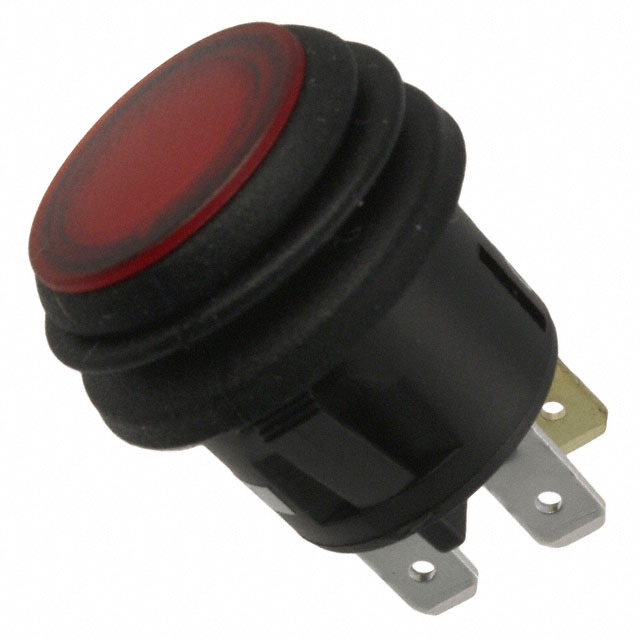

GPB527D2B02BR1

Active

CW Industries

SWITCH PUSHBUTTON SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPB527D2B02BR1

Active

CW Industries

SWITCH PUSHBUTTON SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPB527D2B02BR1

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

GPB527D Series

Part	Type	Actuator Type	Color - Actuator/Cap	Actuator Marking	Ingress Protection	Mounting Type	Voltage Rating - DC	Termination Style	Circuit	Illumination Voltage (Nominal)	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Illumination Type, Color
CW Industries GPB527D2B02BW1	Illuminated Standard	Button Round	White	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	LED White
CW Industries GPB527D2L02BU1	Illuminated Standard	Button Round	Blue	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	Blue LED
CW Industries GPB527D2L02BG1	Illuminated Standard	Button Round	Green	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	Green LED
CW Industries GPB527D202BR	Standard	Button Round	Red	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	14 V	Quick Connect - 0.187" (4.7mm)	SPST		Off-On	10 A 20 A	125 V	-25 °C	85 °C	20.2 mm
CW Industries GPB527D2B02BR1	Illuminated Standard	Button Round	Red	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	LED Red
CW Industries GPB527D202BG	Standard	Button Round	Green	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	14 V	Quick Connect - 0.187" (4.7mm)	SPST		On-Off	10 A 20 A	125 V	-25 °C	85 °C	20.2 mm
CW Industries GPB527D202BB	Standard	Button Round	Black	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	14 V	Quick Connect - 0.187" (4.7mm)	SPST		Off-On	10 A 20 A	125 V	-25 °C	85 °C	20.2 mm
CW Industries GPB527D2B02BA1	Illuminated Standard	Button Round	Amber	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	Amber LED
CW Industries GPB527D2B02BG1	Illuminated Standard	Button Round	Green	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	Green LED
CW Industries GPB527D2B02BU1	Illuminated Standard	Button Round	Blue	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	28 V	Quick Connect - 0.187" (4.7mm)	SPST	12 VDC	Off-On	10 A	125 V	-25 °C	85 °C	20.2 mm	Blue LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.93
		25	$ 5.63
		50	$ 5.39
		100	$ 5.21
		250	$ 4.95
		500	$ 4.53
		1000	$ 4.32

Description

General part information

GPB527D Series

Pushbutton Switch SPST Standard, Illuminated Panel Mount, Snap-In
