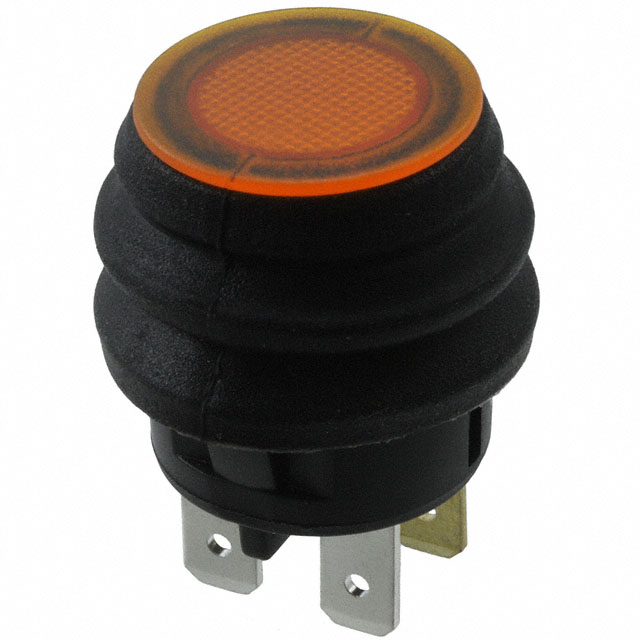

Specification	GPB527D2B02BA1

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST
Color	Amber
Color - Actuator/Cap	Amber
Current Rating	10 A
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	20.2 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.187")	0.187 in
Switch Function	Off-On
Termination Style	Quick Connect
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

GPB527D Series

Part	Quick Connect Size (0.187")	Termination Style	Voltage Rating - DC	Switch Function	Current Rating	Circuit	Type	Actuator Marking	Actuator Type	Illumination Voltage (Nominal)	Voltage Rating - AC	Color - Actuator/Cap	Illumination Type	Color	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Panel Cutout Diameter	Panel Cutout Shape	Ingress Protection IP Rating	Ingress Protection Description
CW Industries GPB527D2B02BW1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	White	LED	White	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2L02BU1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Blue	LED	Blue	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2L02BG1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Green	LED	Green	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D202BR	0.187 in	Quick Connect	14 V	Off-On	10 A 20 A	SPST	Standard	No Marking	Button Round		125 V	Red			85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2B02BR1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Red	LED	Red	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D202BG	0.187 in	Quick Connect	14 V	On-Off	10 A 20 A	SPST	Standard	No Marking	Button Round		125 V	Green			85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D202BB	0.187 in	Quick Connect	14 V	Off-On	10 A 20 A	SPST	Standard	No Marking	Button Round		125 V	Black			85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2B02BA1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Amber	LED	Amber	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2B02BG1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Green	LED	Green	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
CW Industries GPB527D2B02BU1	0.187 in	Quick Connect	28 V	Off-On	10 A	SPST	Illuminated Standard	No Marking	Button Round	12 V	125 V	Blue	LED	Blue	85 °C	-25 °C	Panel Mount Snap-In	20.2 mm	Circular	IP65	Dust Tight Water Resistant
