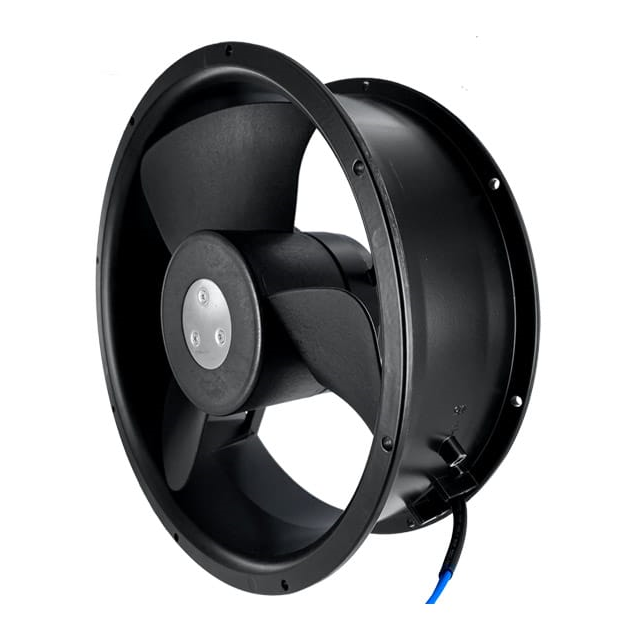

FKA2-25489NBHW3F

Active

Qualtek

FAN AXIAL 254X89MM 115VAC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 254X89MM 115VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Power (Watts)	Width [y]	Size / Dimension [diameter]	Size / Dimension	Approval Agency	Noise	Current Rating (Amps)	Termination	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Air Flow	Air Flow	Weight	Weight	Fan Type	Bearing Type	Static Pressure	Static Pressure	RPM
Qualtek FKA2-25489NBHW3F	Plastic	67.8 W	89 mm	10 in	Round	CE cURus TUV	62 dB(A)	0.62 A	2 Wire Leads	Aluminum	70 °C	70 °C	-10 °C	-10 °C	115 VAC	17.64 mł/min	630 CFM	4.4 lbs	2 kg	Tubeaxial	Ball	68.7 Pa	0.276 in H2O	2000 RPM
Qualtek FKA2-25489QBHW3F	Plastic		89 mm	10 in	Round	CE cURus TUV	62 dB(A)		2 Wire Leads	Aluminum	70 °C	70 °C	-10 °C	-10 °C	230 VAC	14.84 mł/min	530 CFM	4.4 lbs	2 kg	Tubeaxial	Ball	68.7 Pa	0.276 in H2O	2000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 87.75

General part information

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 630.0 CFM (17.64m³/min) 2 Wire Leads
