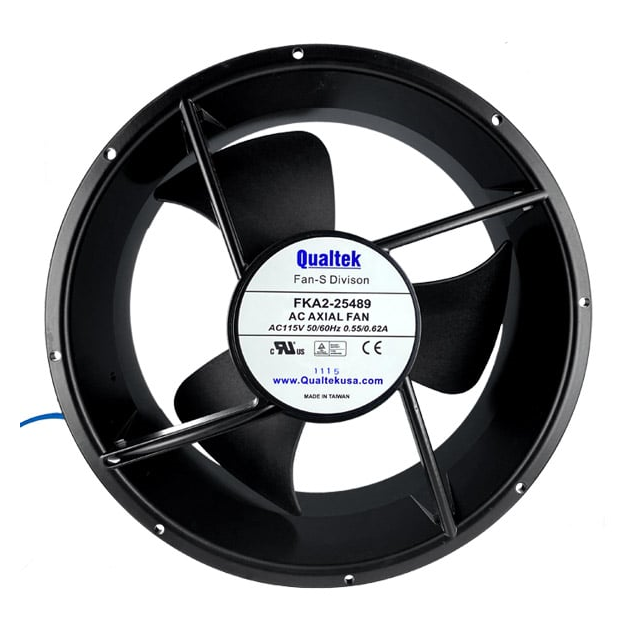

FKA2-25489QBHW3F
ActiveQualtek
FAN AXIAL 254X89MM 230VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FKA2-25489QBHW3F
ActiveQualtek
FAN AXIAL 254X89MM 230VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FKA2-25489QBHW3F |
|---|---|
| Air Flow | 530 CFM |
| Air Flow | 14.84 mł/min |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 62 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 2000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 68.7 Pa |
| Static Pressure | 0.276 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 4.4 lbs |
| Weight | 2 kg |
| Width [y] | 89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.46 | |
| 12 | $ 84.89 | |||
| 30 | $ 83.69 | |||
| 54 | $ 78.31 | |||
| 102 | $ 76.52 | |||
Description
General part information
FKA2-25489 Series
Fan Tubeaxial 230VAC Round - 254mm Dia Ball 530.0 CFM (14.84mł/min) 2 Wire Leads
