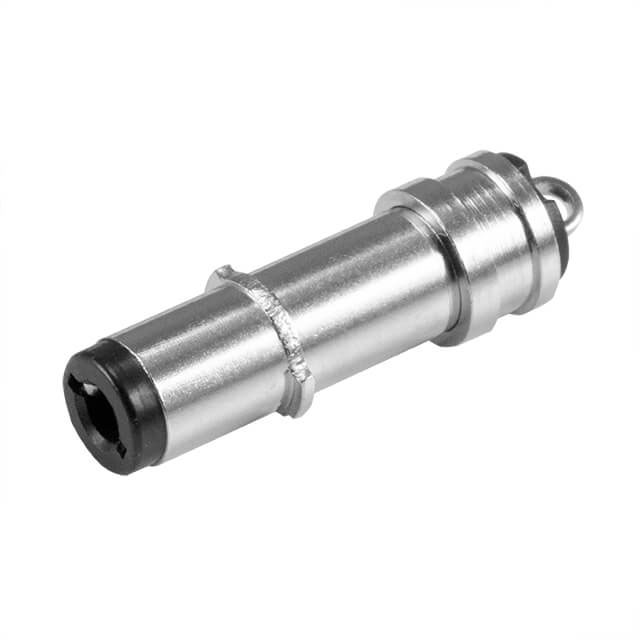

PP-2555TL-OM

Active

CUI Devices

CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

CUI Devices

CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	PP-2555TL-OM

Actual Diameter [custom]	2.5 mm
Actual Diameter [custom]	0.098 "
Actual Diameter [custom]	0.217 "
Actual Diameter [custom]	5.5 mm
Body Color	Silver
Body Material	Brass
Connector Type	Plug
Contact Material	Phosphor Bronze
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	7 A
Gender	Female
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Insulation Color	Black
Internal Switch(s)	False
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.295 in
Mating Length/Depth	7.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet
Voltage - Rated	20 V

Part	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Color	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Voltage - Rated	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Material Flammability Rating	Shielding	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Contact Material	Gender	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Mounting Type	Termination	Current Rating (Amps)	Body Color	Housing Material	Features
CUI Devices PP-2555TL-OM	Brass	70 °C	-25 °C	Plug	Black	2.5 mm	0.098 "	0.217 "	5.5 mm	20 V	2	2	UL94 V-0	Unshielded	2.5 mm 5.5 mm	0.098 " 0.217 "	Phosphor Bronze	Female	Nickel	0.295 in	7.5 mm	Free Hanging (In-Line)	Solder Eyelet	7 A	Silver
CUI Devices PP-2555TL-OM	Brass	70 °C	-25 °C	Plug	Black	2.5 mm	0.098 "	0.217 "	5.5 mm	20 V	2	2	UL94 V-0	Unshielded	2.5 mm 5.5 mm	0.098 " 0.217 "	Phosphor Bronze	Female	Nickel	0.295 in	7.5 mm	Free Hanging (In-Line)	Solder Eyelet	7 A	Silver
CUI Devices PP-2555TL-M	Brass	70 °C	-25 °C	Plug	Black	2.5 mm	0.098 "	0.217 "	5.5 mm	24 VDC	2	2	UL94 HB	Unshielded	2.5 mm 5.5 mm	0.098 " 0.217 "	Brass Phosphor Bronze	Female	Nickel	0.295 in	7.5 mm	Free Hanging (In-Line)	Solder Eyelet	7 A	Black Silver	Acrylonitrile Butadiene Styrene (ABS)	Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
