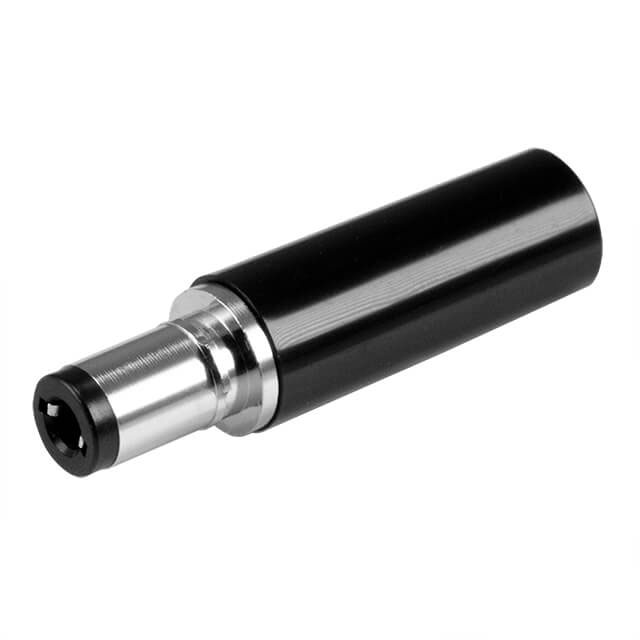

PP-2555TL-M
ActiveCUI Devices
POWER PLUG, 2.5 X 5.5 MM, STRAIG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PP-2555TL-M
ActiveCUI Devices
POWER PLUG, 2.5 X 5.5 MM, STRAIG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-2555TL-M |
|---|---|
| Actual Diameter [custom] | 2.5 mm |
| Actual Diameter [custom] | 0.098 " |
| Actual Diameter [custom] | 0.217 " |
| Actual Diameter [custom] | 5.5 mm |
| Body Color | Silver, Black |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating [custom] | Nickel |
| Current Rating (Amps) | 7 A |
| Features | Cover |
| Gender | Female |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 HB |
| Mating Length/Depth | 0.295 in |
| Mating Length/Depth | 7.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.23 | |
| 10 | $ 2.47 | |||
| 25 | $ 2.22 | |||
| 50 | $ 2.06 | |||
| 100 | $ 1.91 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.61 | |||
| 1000 | $ 1.50 | |||
| 2500 | $ 1.37 | |||
Description
General part information
PP-2555 Series
Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
