M50-3550842

Active

Harwin Inc.

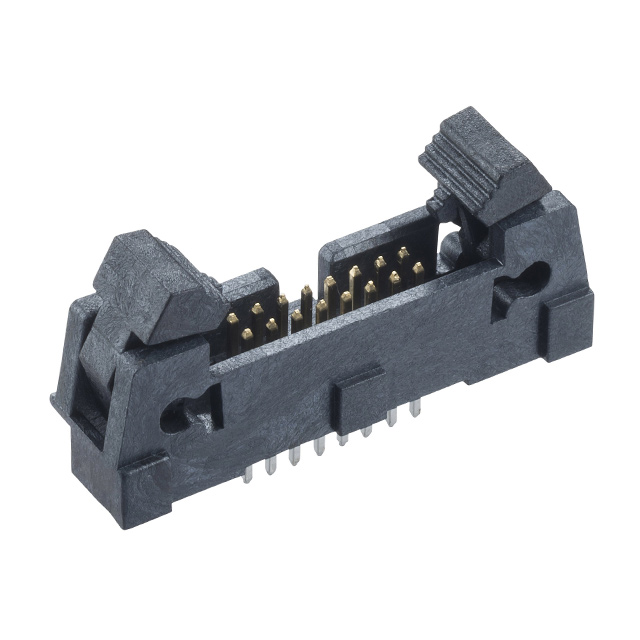

CONNECTOR, HEADER16POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3530842 M50-3000345 +2

M50-3550842

Active

Harwin Inc.

CONNECTOR, HEADER16POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3530842 M50-3000345 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3550842

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mated Stacking Heights	11.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.92 mm
Overall Contact Length	0.351 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

M50-355 Series

Part	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Features	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Material Flammability Rating	Contact Shape	Contact Material	Contact Finish - Post	Style	Shrouding	Insulation Color	Contact Length - Post	Contact Length - Post	Connector Type	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Harwin Inc. M50-3551042	Male Pin	3.05 mm	0.12 in	All	0.05 in	1.27 mm	11.6 mm	8.25 mm	0.325 in	0.05 in	1.27 mm	Gold	20	-55 °C	125 °C	8.92 mm	0.351 in	Latch Lock/Eject Hooks	Flash	Through Hole	Keying Slot	Solder	2.54 µm	100 µin	2	UL94 V-0	Square	Brass	Tin	Board to Board Cable	Shrouded - 4 Wall	Black	0.107 "	2.71 mm	Header	1.75 A
Harwin Inc. M50-3551342	Male Pin	3.05 mm	0.12 in	All	0.05 in	1.27 mm	11.6 mm	8.25 mm	0.325 in	0.05 in	1.27 mm	Gold	26	-55 °C	125 °C	8.92 mm	0.351 in	Latch Lock/Eject Hooks	Flash	Through Hole	Keying Slot	Solder	2.54 µm	100 µin	2	UL94 V-0	Square	Brass	Tin	Board to Board Cable	Shrouded - 4 Wall	Black	0.107 "	2.71 mm	Header	1.75 A
Harwin Inc. M50-3550842	Male Pin	3.05 mm	0.12 in	All	0.05 in	1.27 mm	11.6 mm	8.25 mm	0.325 in	0.05 in	1.27 mm	Gold		-55 °C	125 °C	8.92 mm	0.351 in	Latch Lock/Eject Hooks		Through Hole	Keying Slot	Solder	2.54 µm	100 µin	2	UL94 V-0	Square	Brass	Tin	Board to Board Cable	Shrouded - 4 Wall	Black	0.107 "	2.71 mm	Header	1.75 A	16	15 µin	0.38 µm
Harwin Inc. M50-3552042	Male Pin	3.05 mm	0.12 in	All	0.05 in	1.27 mm	11.6 mm	8.25 mm	0.325 in	0.05 in	1.27 mm	Gold	40	-55 °C	125 °C	8.92 mm	0.351 in	Latch Lock/Eject Hooks	Flash	Through Hole	Keying Slot	Solder	2.54 µm	100 µin	2	UL94 V-0	Square	Brass	Tin	Board to Board Cable	Shrouded - 4 Wall	Black	0.107 "	2.71 mm	Header	1.75 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.21
		23	$ 2.92
		115	$ 2.57
		506	$ 2.18
		1012	$ 1.86
		5014	$ 1.67
Newark	Each	10	$ 2.64
		50	$ 2.53
		100	$ 2.43
		250	$ 2.32
		500	$ 2.20
		1000	$ 2.07
		2500	$ 1.98

Description

General part information

M50-355 Series

Connector Header Through Hole 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

M50-3530842

M50-3000345

M50,M52 Series Spec Sheet

Datasheet
