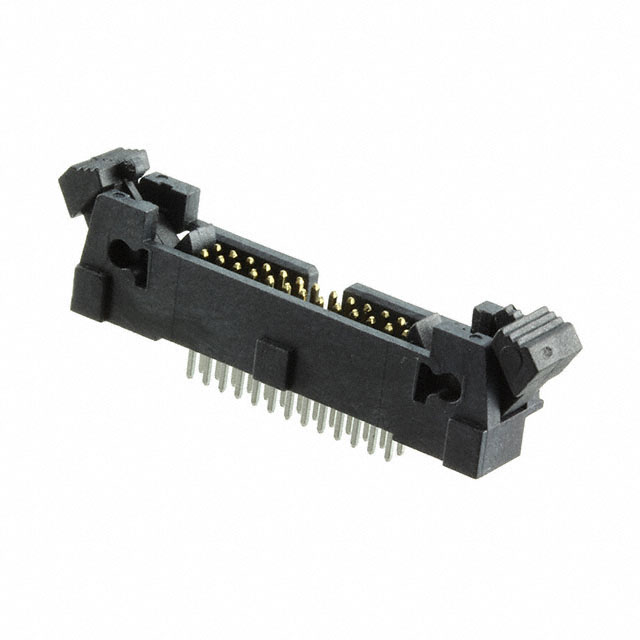

M50-3551342 - M50-3551342

M50-3551342

Active
Harwin Inc.

WIRE-TO-BOARD CONNECTOR, EJECTOR, M50 SERIES, THROUGH HOLE, HEADER, 26, 1.27 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM50-3000345+7
M50-3551342 - M50-3551342

M50-3551342

Active
Harwin Inc.

WIRE-TO-BOARD CONNECTOR, EJECTOR, M50 SERIES, THROUGH HOLE, HEADER, 26, 1.27 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetM50-3000345+7

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-3551342
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - MatingFlash
Contact Finish Thickness - Post2.54 µm
Contact Finish Thickness - Post100 µin
Contact Length - Mating3.05 mm
Contact Length - Mating0.12 in
Contact Length - Post0.107 "
Contact Length - Post2.71 mm
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)1.75 A
Fastening TypeLatch Lock/Eject Hooks
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height8.25 mm
Insulation Height0.325 in
Mated Stacking Heights11.6 mm
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions26
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Overall Contact Length8.92 mm
Overall Contact Length0.351 in
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Row Spacing - Mating0.05 in
Row Spacing - Mating1.27 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 2.44
18$ 2.22
108$ 1.96
504$ 1.72
NewarkEach 1$ 2.96
10$ 2.66
50$ 2.37
100$ 2.22
250$ 2.07

Description

General part information

M50-355 Series

Connector Header Through Hole 26 position 0.050" (1.27mm)
