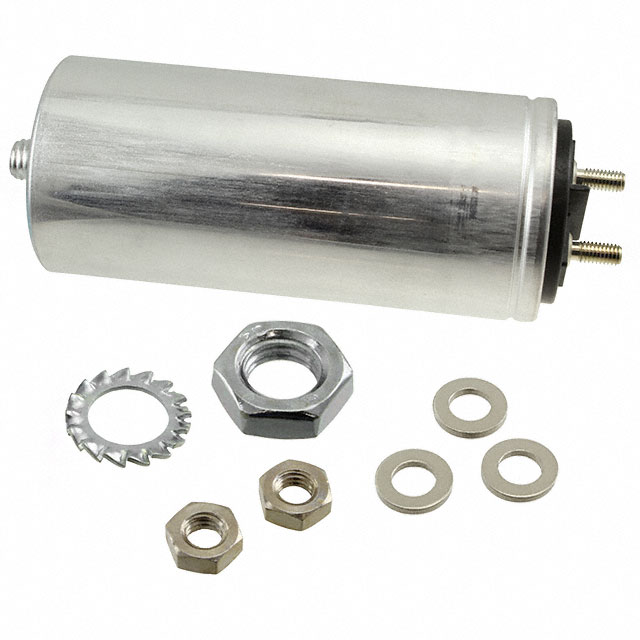

C44AFGP6100ZG0J

Active

KEMET

CAP FILM 100UF 400V PP 5%( 60 X 138MM) STUD MOUNT SCREW ALUMINUM CYLINDRICAL CAN 0.004 OHM 85°C BULK

Search across all available documentation for this part.

Active

KEMET

CAP FILM 100UF 400V PP 5%( 60 X 138MM) STUD MOUNT SCREW ALUMINUM CYLINDRICAL CAN 0.004 OHM 85°C BULK

Technical Specifications

Parameters and characteristics for this part

Specification	C44AFGP6100ZG0J

Applications	General Purpose
Capacitance	100 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4 mOhms
Height - Seated (Max) [Max] [z]	140 mm
Height - Seated (Max) [Max] [z]	5.512 in
Lead Spacing	22.3 mm
Lead Spacing	0.878 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	60 mm
Size / Dimension [diameter]	2.362 in
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	250 V
Voltage Rating - DC	400 V

Part	ESR (Equivalent Series Resistance)	Capacitance	Lead Spacing	Lead Spacing	Dielectric Material	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Tolerance	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C44AFGR6250ZA0J	4 mOhms	250 µF	35 mm	1.378 "	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	3.346 "	85 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can	5.984 in	152 mm
KEMET C44AFGP6200ZE0J	4 mOhms		22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.992 in	76 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGP6100ZG0J	4 mOhms	100 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.362 in	60 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGP6150ZA0J	4 mOhms	150 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.756 in	70 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGR6200ZE0J					Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose			400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can
KEMET C44AFGP6130ZA0J	4 mOhms	130 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.559 in	65 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, Can
