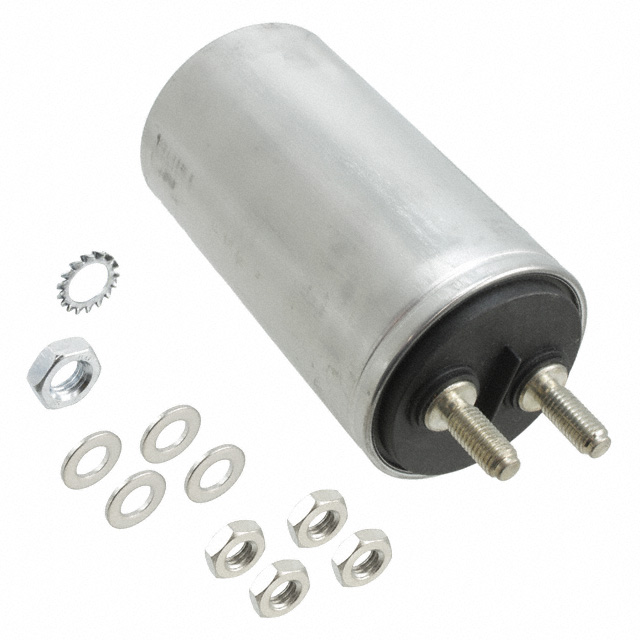

C44AFGR6200ZE0J

Active

KEMET

CAP FILM 200UF 5% 400VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 200UF 5% 400VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C44AFGR6200ZE0J

Applications	General Purpose
Dielectric Material	Metallized, Polypropylene (PP)
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	250 V
Voltage Rating - DC	400 V

Part	ESR (Equivalent Series Resistance)	Capacitance	Lead Spacing	Lead Spacing	Dielectric Material	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Tolerance	Voltage Rating - AC	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C44AFGR6250ZA0J	4 mOhms	250 µF	35 mm	1.378 "	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	3.346 "	85 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can	5.984 in	152 mm
KEMET C44AFGP6200ZE0J	4 mOhms		22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.992 in	76 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGP6100ZG0J	4 mOhms	100 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.362 in	60 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGP6150ZA0J	4 mOhms	150 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.756 in	70 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in
KEMET C44AFGR6200ZE0J					Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose			400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can
KEMET C44AFGP6130ZA0J	4 mOhms	130 µF	22.3 mm	0.878 in	Metallized Polypropylene (PP)	Chassis Stud Mount	General Purpose	2.559 in	65 mm	400 V	85 °C	-40 °C	Threaded Male	5 %	250 V	Radial Can			140 mm	5.512 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 103.61

General part information

200 µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, Can
