0801672

Active

Phoenix Contact

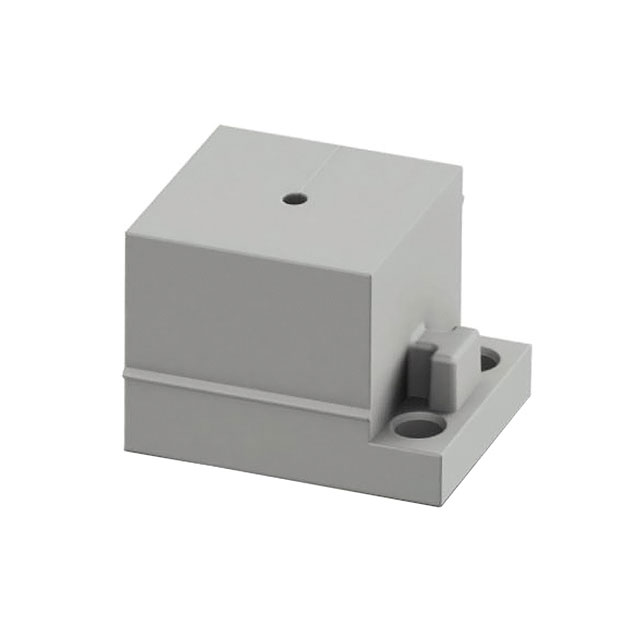

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Search across all available documentation for this part.

0801672

Active

Phoenix Contact

FRAME GROMMET ELASTOMER GRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.94
		10	$ 2.61
		50	$ 2.38
		100	$ 2.28
		250	$ 2.09
		500	$ 1.96
		1000	$ 1.81
LCSC	Piece	1	$ 2.19

Description

General part information

CES-STPG Series

Frame Grommet 0.039" ~ 0.079" (1.00mm ~ 2.00mm) Gray

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801672	CES-STPG Series

Accessory Type	-	Hole Plug
Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Gray	Gray
Diameter - Inside	-	0.236 "
Diameter - Inside	-	0.276 "
Diameter - Inside [Max] [diameter]	2 mm	2 - 15 mm
Diameter - Inside [Max] [diameter]	0.079 "	0.079 - 6 in
Diameter - Inside [Min] [diameter]	1 mm	1 - 14 mm
Diameter - Inside [Min] [diameter]	0.039 "	0.039 - 5 in
Features	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54, Dust Protected
For Use With/Related Products	Wires, Cable	2 Cable Openings, Wires, Cable, 1 ASI Cable Opening (R), PLUSCON CES Sealing Frames, 2 ASI Cables Openings (L-L), 2 ASI Cables Openings (R-R), 4 Cable Openings
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0

CES-STPG Series

CES-STPG-GY-2X3

Part	Features	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Color	For Use With/Related Products	Material Flammability Rating	Bushing, Grommet Type	Material	Accessory Type
Phoenix Contact 1410424	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	3 mm	0.079 in	2 mm	0.118 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410438	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	4 mm	0.118 in	3 mm	0.157 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410521	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	15 mm	0.551 in	14 mm	0.591 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410440	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	9 mm	0.315 in	8 mm	0.354 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801673	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	3 mm	0.079 in	2 mm	0.118 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801672	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	2 mm	0.039 "	1 mm	0.079 "	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801680	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	9 mm	0.315 in	8 mm	0.354 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801712	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant					Gray	1 ASI Cable Opening (R)	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801715	Flame Retardant, IP54						PLUSCON CES Sealing Frames			Elastomer	Hole Plug
Phoenix Contact 1410071	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant					Gray	2 ASI Cables Openings (L-L)	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
