1410071

Active

Phoenix Contact

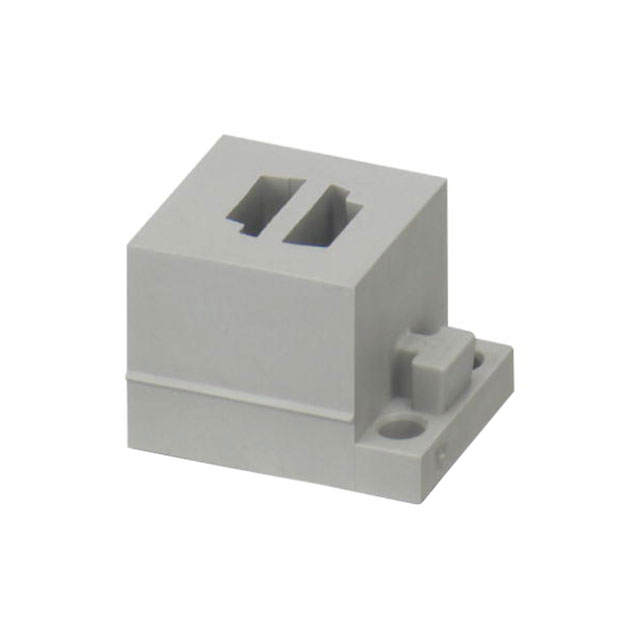

CES-STPG-GY-2ASI-LL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1410071

Active

Phoenix Contact

CES-STPG-GY-2ASI-LL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.17

Description

General part information

CES-STPG Series

Frame Grommet Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1410071	CES-STPG Series

Accessory Type	-	Hole Plug
Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Gray	Gray
Diameter - Inside	-	2 - 15 mm
Diameter - Inside	-	0.039 - 5 in
Diameter - Inside	-	1 - 14 mm
Diameter - Inside	-	0.079 - 6 in
Diameter - Inside	-	0.236 "
Diameter - Inside	-	0.276 "
Features	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking	Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54, Dust Protected
For Use With/Related Products	2 ASI Cables Openings (L-L)	2 Cable Openings, Wires, Cable, 1 ASI Cable Opening (R), PLUSCON CES Sealing Frames, 2 ASI Cables Openings (L-L), 2 ASI Cables Openings (R-R), 4 Cable Openings
Material	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0

CES-STPG Series

CES-STPG-GY-2X3

Part	Features	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Color	For Use With/Related Products	Material Flammability Rating	Bushing, Grommet Type	Material	Accessory Type
Phoenix Contact 1410424	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	3 mm	0.079 in	2 mm	0.118 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410438	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	4 mm	0.118 in	3 mm	0.157 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410521	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	15 mm	0.551 in	14 mm	0.591 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 1410440	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	9 mm	0.315 in	8 mm	0.354 in	Gray	2 Cable Openings	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801673	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	3 mm	0.079 in	2 mm	0.118 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801672	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	2 mm	0.039 "	1 mm	0.079 "	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801680	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant	9 mm	0.315 in	8 mm	0.354 in	Gray	Cable, Wires	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801712	Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant					Gray	1 ASI Cable Opening (R)	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
Phoenix Contact 0801715	Flame Retardant, IP54						PLUSCON CES Sealing Frames			Elastomer	Hole Plug
Phoenix Contact 1410071	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant					Gray	2 ASI Cables Openings (L-L)	UL94 V-0	Frame Grommet	Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS
