1410149
ActivePhoenix Contact

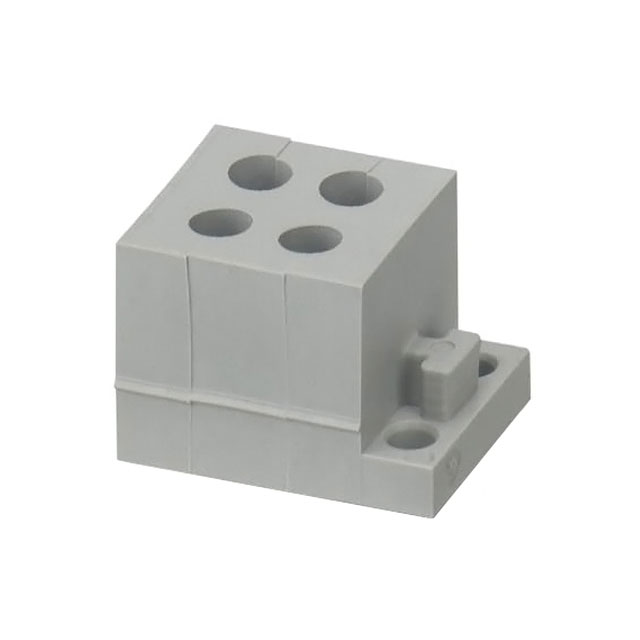

FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1410149
ActivePhoenix Contact
FRAME GROMMET ELASTOMER GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1410149 | CES-STPG Series |
|---|---|---|
| Accessory Type | - | Hole Plug |
| Bushing, Grommet Type | Frame Grommet | Frame Grommet |
| Color | Gray | Gray |
| Diameter - Inside | - | 2 - 15 mm |
| Diameter - Inside | - | 1 - 14 mm |
| Diameter - Inside | - | 0.236 " |
| Diameter - Inside | - | 0.276 " |
| Diameter - Inside [Max] [diameter] | 0.236 in, 6 mm | 0.079 - 6 in |
| Diameter - Inside [Min] [diameter] | 0.197 in, 5 mm | 0.039 - 5 in |
| Features | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch | Flame Retardant, IP54 - Dust Protected, Water Resistant, Screw Locking, Locking Latch, IP54, Dust Protected |
| For Use With/Related Products | 4 Cable Openings | 2 Cable Openings, Wires, Cable, 1 ASI Cable Opening (R), PLUSCON CES Sealing Frames, 2 ASI Cables Openings (L-L), 2 ASI Cables Openings (R-R), 4 Cable Openings |
| Material | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS, Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
CES-STPG Series
CES-STPG-GY-2X3
| Part | Features | Diameter - Inside [Max] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] | Color | For Use With/Related Products | Material Flammability Rating | Bushing, Grommet Type | Material | Accessory Type | Diameter - Inside [Min] [diameter] | Diameter - Inside [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1410424 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 3 mm | 0.079 in | 2 mm | 0.118 in | Gray | 2 Cable Openings | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 1410438 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 4 mm | 0.118 in | 3 mm | 0.157 in | Gray | 2 Cable Openings | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 1410521 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 15 mm | 0.551 in | 14 mm | 0.591 in | Gray | Cable, Wires | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 1410440 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 9 mm | 0.315 in | 8 mm | 0.354 in | Gray | 2 Cable Openings | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 0801673 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 3 mm | 0.079 in | 2 mm | 0.118 in | Gray | Cable, Wires | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 0801672 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 2 mm | 0.039 " | 1 mm | 0.079 " | Gray | Cable, Wires | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 0801680 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | 9 mm | 0.315 in | 8 mm | 0.354 in | Gray | Cable, Wires | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||
Phoenix Contact 0801712 | Flame Retardant, IP54 - Dust Protected, Locking Latch, Screw Locking, Water Resistant | Gray | 1 ASI Cable Opening (R) | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS | |||||||
Phoenix Contact 0801715 | Flame Retardant, IP54 | PLUSCON CES Sealing Frames | Elastomer | Hole Plug | |||||||||
Phoenix Contact 1410071 | Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant | Gray | 2 ASI Cables Openings (L-L) | UL94 V-0 | Frame Grommet | Poly (Styrene-Ethylene-Butadiene-Styrene) Elastomer, SEBS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.61 | |
Description
General part information
CES-STPG Series
Frame Grommet 0.197" ~ 0.236" (5.00mm ~ 6.00mm) Gray
