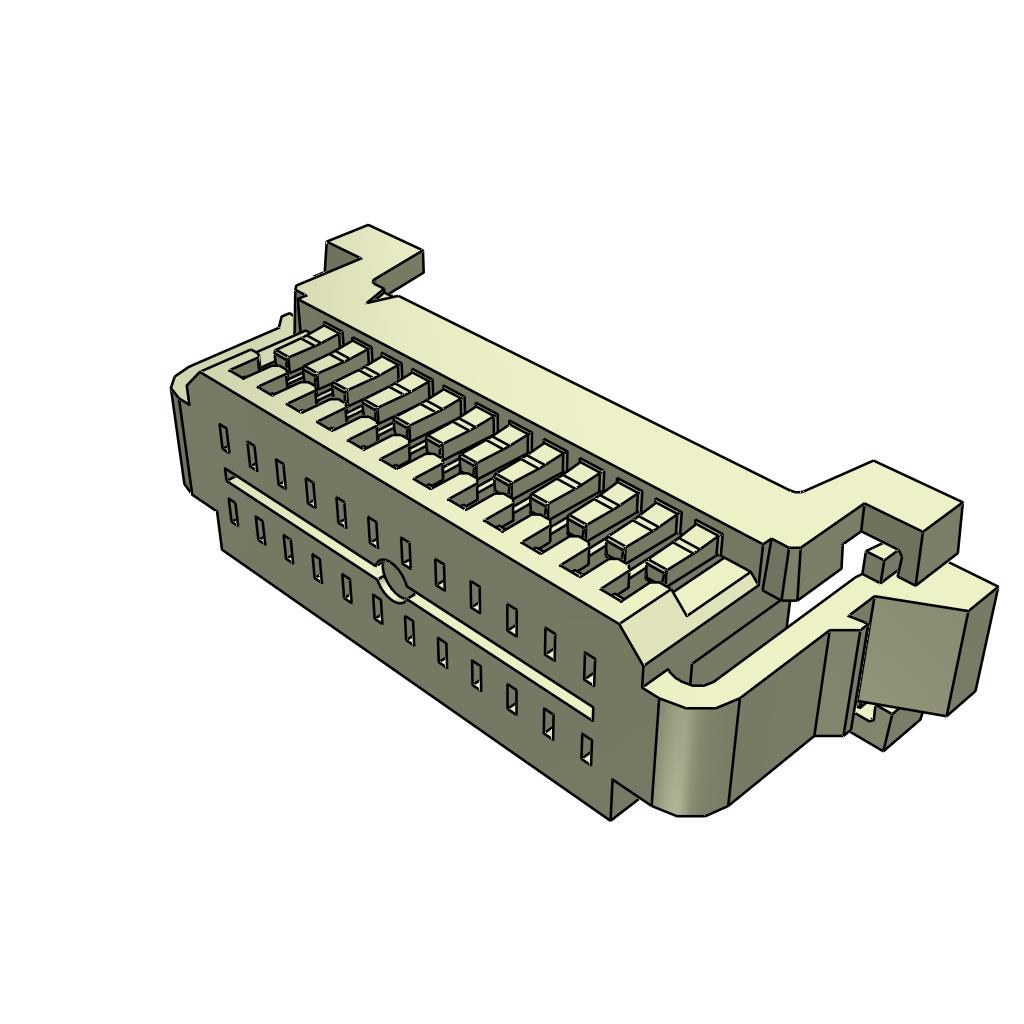

ISD1-12
ActiveSamtec Inc.
CONN HSG 24POS 1.00MM
Deep-Dive with AI
Search across all available documentation for this part.
ISD1-12
ActiveSamtec Inc.
CONN HSG 24POS 1.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISD1-12 |
|---|---|
| Color | White |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Row Spacing | 0.039 in |
| Row Spacing | 1 mm |
ISD1 Series
| Part | Pitch [x] | Pitch [x] | Number of Rows | Fastening Type | Note | Color | Contact Type | Number of Positions | Row Spacing | Row Spacing | Insulation Material | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 34 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 30 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 10 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 20 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 24 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Samtec Inc. | 0.039 in | 1 mm | 2 | Latch Lock | Contacts Not Included | White | Female Socket | 40 | 0.039 in | 1 mm | Nylon Polyamide (PA) | Free Hanging (In-Line) | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ISD1 Series
24 Rectangular Connectors - Housings White 0.039" (1.00mm)
Documents
Technical documentation and resources
