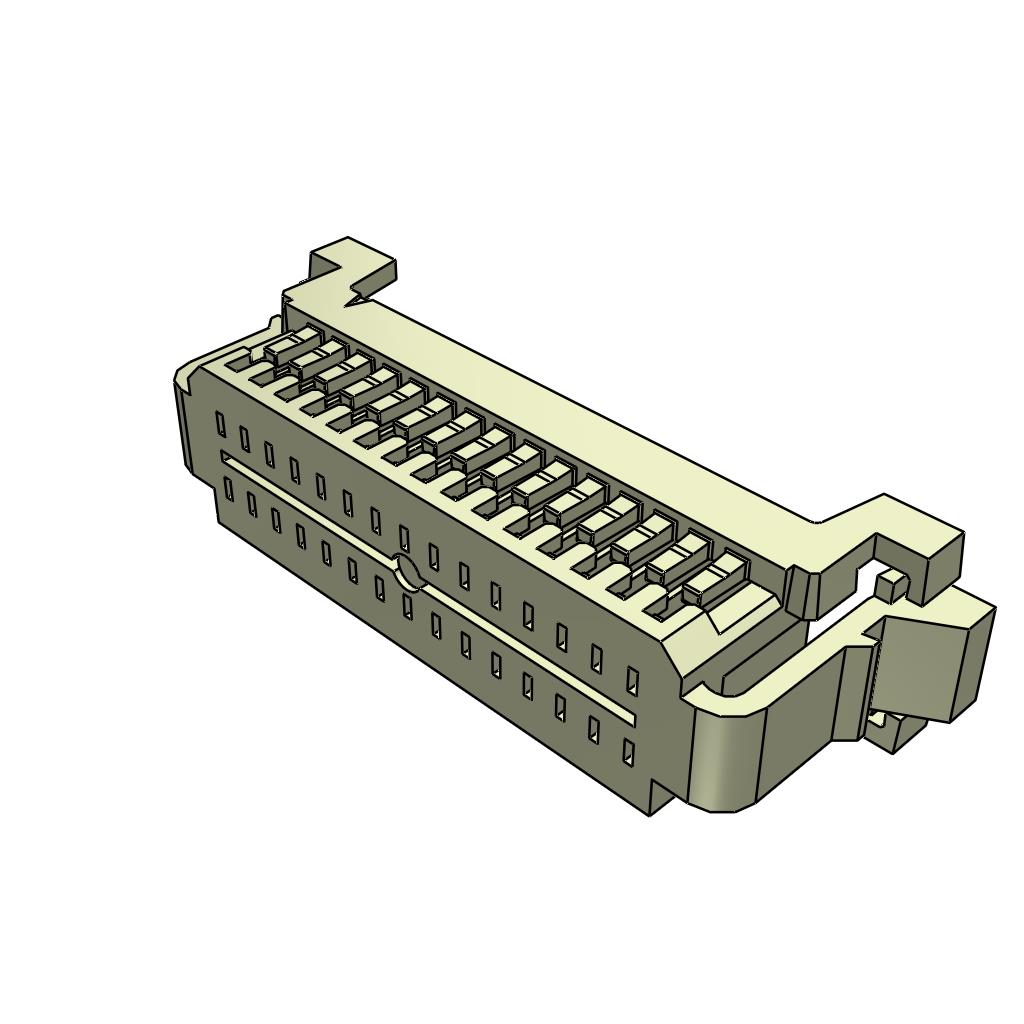

ISD1-15

Active

Samtec Inc.

RCPT HOUSING, 30POS, 2ROW, 2.54MM, WHT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

RCPT HOUSING, 30POS, 2ROW, 2.54MM, WHT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Rows	Fastening Type	Note	Color	Contact Type	Number of Positions	Row Spacing	Row Spacing	Insulation Material	Mounting Type	Contact Termination
Samtec Inc. ISD1-17	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	34	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp
Samtec Inc. ISD1-15	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	30	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp
Samtec Inc. ISD1-05	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	10	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp
Samtec Inc. ISD1-10	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	20	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp
Samtec Inc. ISD1-12	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	24	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp
Samtec Inc. ISD1-20	0.039 in	1 mm	2	Latch Lock	Contacts Not Included	White	Female Socket	40	0.039 in	1 mm	Nylon Polyamide (PA)	Free Hanging (In-Line)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Rectangular Connectors - Housings White 0.039" (1.00mm)
