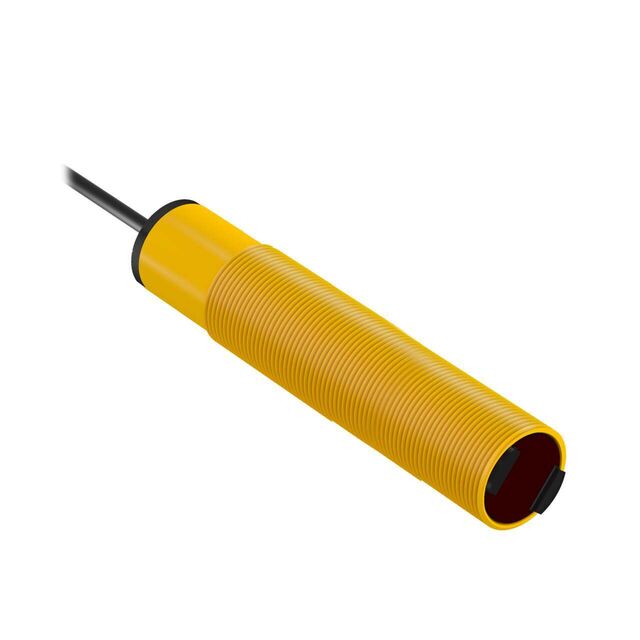

S18RW3FF100

S18RW3FF50 W/30

Active
BANNER ENGINEERING

PHOTOELECTRIC SENSORS EZ-BEAM S18 SERIES: FIXED FIELD; RANGE: 50 MM; INPUT: 20-250 V AC; OUTPUT: SPST SOLID-STATE DARK OPERATE; 9 M (30 FT) CABLE

Find alt
S18RW3FF100

S18RW3FF50 W/30

Active
BANNER ENGINEERING

PHOTOELECTRIC SENSORS EZ-BEAM S18 SERIES: FIXED FIELD; RANGE: 50 MM; INPUT: 20-250 V AC; OUTPUT: SPST SOLID-STATE DARK OPERATE; 9 M (30 FT) CABLE

Find alt

Description

General part information

S18 Series

Background Suppression Optical Sensor 1.969" (50mm) SPST - Dark-ON

Technical Specifications

Parameters and characteristics for this part

SpecificationS18RW3FF50 W/30
Cable Length354.331 in
Connection MethodCable
Ingress ProtectionNEMA 6P, IEC, IP69K, IP67
Light SourceInfrared
Light Source Wavelength (Infrared)880 nm
Operating Temperature (Max)70 °C
Operating Temperature (Min)-40 °C
Output ConfigurationSPST - Dark-ON
Response Time16 ms
Sensing Distance1.969 "
Sensing MethodBackground Suppression
Voltage - Supply (Maximum)250 VAC
Voltage - Supply (Minimum)20 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing (PDF)
