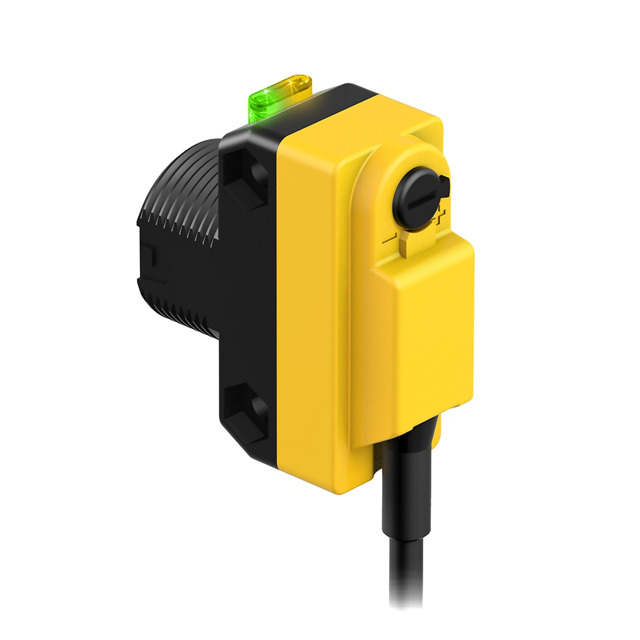

S18SP6L W/30

Active

BANNER ENGINEERING

RANGE: 2 M; INPUT: 10-30 V DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S18SP6L W/30

Active

BANNER ENGINEERING

RANGE: 2 M; INPUT: 10-30 V DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S18SP6L W/30

Cable Length	354.33 in
Cable Length	9 m
Connection Method	Cable
Ingress Protection	IEC IP69K, IEC IP67, NEMA 6P
Light Source	Infrared (950nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

S18SP6 Series

Part	Ingress Protection	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Sensing Distance	Sensing Distance	Response Time	Connection Method	Light Source	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING S18SP6L W/30	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	NonPolarized Retroreflective	78.74 "	2 m	3 ms	Cable	Infrared (950nm)	354.33 in	9 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6LP W/30	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	Polarized Retroreflective	78.74 "	2 m	3 ms	Cable	Red	354.33 in	9 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6R	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Through-Beam	787.402 in	20 m	3 ms	Cable	Infrared (950nm)	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6LPQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Polarized Retroreflective	78.74 "	2 m	3 ms	Connector	Red LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6D	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	3.937 in	100 mm	3 ms	Cable	Infrared	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6DL	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	11.811 in	300 mm	3 ms	Cable	Infrared	78.74 in	2 m	-40 °C	70 °C
BANNER ENGINEERING S18SP6FF100QP	IEC IP67 IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC	Background Suppression	3.937 in	100 mm	3 ms	Connector	Infrared			-40 °C	70 °C
BANNER ENGINEERING S18SP6LQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NonPolarized Retroreflective	78.74 "	2 m	3 ms	Connector	Infrared LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6DQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	3.937 in	100 mm	3 ms	Connector	Infrared LED			-40 °C	70 °C
BANNER ENGINEERING S18SP6DLQ	IEC IP69K NEMA 6P	PNP - Dark-ON/Light-ON	30 VDC	10 VDC	Diffuse	11.811 in	300 mm	3 ms	Connector	Infrared LED			-40 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 90.00

Description

General part information

S18SP6 Series

Retroreflective, NonPolarized Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON - Selectable
