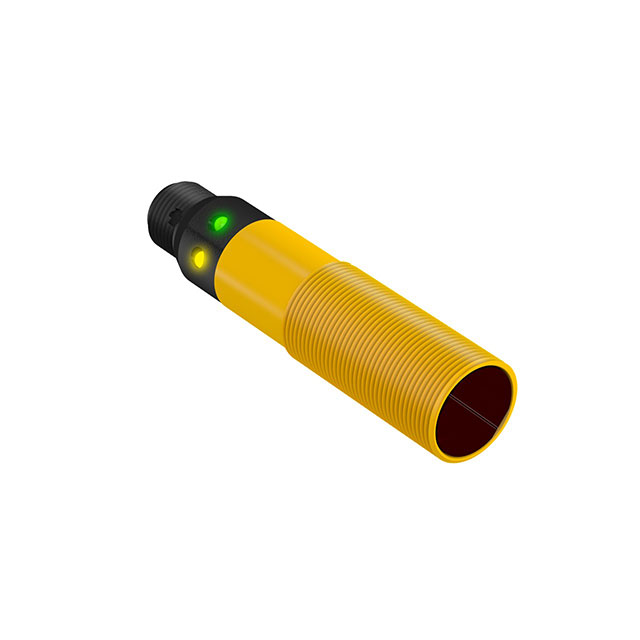

S18SP6LQ
ActiveBANNER ENGINEERING
EZ-BEAM S18 SERIES: RETRO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S18SP6LQ
ActiveBANNER ENGINEERING
EZ-BEAM S18 SERIES: RETRO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S18SP6LQ |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IEC IP69K |
| Light Source | Infrared LED |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP - Dark-ON/Light-ON |
| Response Time | 3 ms |
| Sensing Distance | 78.74 " |
| Sensing Distance | 2 m |
| Sensing Method | NonPolarized, Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
S18SP6 Series
| Part | Ingress Protection | Output Configuration | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensing Method | Sensing Distance | Sensing Distance | Response Time | Connection Method | Light Source | Cable Length | Cable Length | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON - Selectable | 30 VDC | 10 VDC | NonPolarized Retroreflective | 78.74 " | 2 m | 3 ms | Cable | Infrared (950nm) | 354.33 in | 9 m | -40 °C | 70 °C |
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON - Selectable | 30 VDC | 10 VDC | Polarized Retroreflective | 78.74 " | 2 m | 3 ms | Cable | Red | 354.33 in | 9 m | -40 °C | 70 °C |
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Through-Beam | 787.402 in | 20 m | 3 ms | Cable | Infrared (950nm) | 78.74 in | 2 m | -40 °C | 70 °C |
BANNER ENGINEERING | IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Polarized Retroreflective | 78.74 " | 2 m | 3 ms | Connector | Red LED | -40 °C | 70 °C | ||
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Diffuse | 3.937 in | 100 mm | 3 ms | Cable | Infrared | 78.74 in | 2 m | -40 °C | 70 °C |
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Diffuse | 11.811 in | 300 mm | 3 ms | Cable | Infrared | 78.74 in | 2 m | -40 °C | 70 °C |
BANNER ENGINEERING | IEC IP67 IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON - Selectable | 30 VDC | 10 VDC | Background Suppression | 3.937 in | 100 mm | 3 ms | Connector | Infrared | -40 °C | 70 °C | ||
BANNER ENGINEERING | IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | NonPolarized Retroreflective | 78.74 " | 2 m | 3 ms | Connector | Infrared LED | -40 °C | 70 °C | ||
BANNER ENGINEERING | IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Diffuse | 3.937 in | 100 mm | 3 ms | Connector | Infrared LED | -40 °C | 70 °C | ||
BANNER ENGINEERING | IEC IP69K NEMA 6P | PNP - Dark-ON/Light-ON | 30 VDC | 10 VDC | Diffuse | 11.811 in | 300 mm | 3 ms | Connector | Infrared LED | -40 °C | 70 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18SP6 Series
Retroreflective, NonPolarized Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON
