7923A 0101000

Active

Belden Inc.

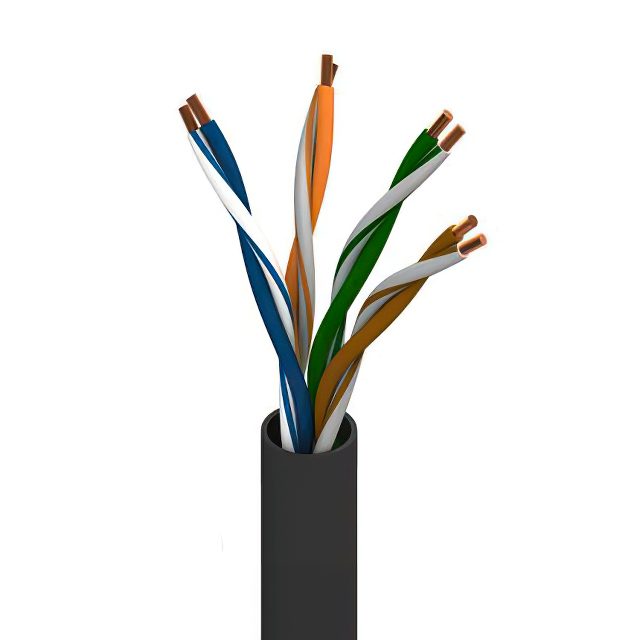

CABLE CAT5E 8CON 24AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	7923A 0101000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Jacket (Insulation) Material	Usage	Voltage	Features	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Ratings	Conductor Material	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Strand
Belden Inc. 7923A 0061000	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	Industrial Network	300 V	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	-40 °C	75 ░C	24 AWG	UL Style CMR	Copper Bare	Blue	8	5.84 mm	0.23 in	1000 ft	304.8 m	Solid
Belden Inc. 7923A 0021000	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	Industrial Network	300 V	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	-40 °C	75 ░C	24 AWG	UL Style CMR	Copper Bare	Red	8	5.84 mm	0.23 in	1000 ft	304.8 m	Solid
Belden Inc. 7923A 0101000	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	Industrial Network	300 V	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	-40 °C	75 ░C	24 AWG	UL Style CMR	Copper Bare	Black	8	5.84 mm	0.23 in	1000 ft	304.8 m	Solid
Belden Inc. 7923A 1NH1000	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	Industrial Network	300 V	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	-40 °C	75 ░C	24 AWG	UL Style CMR	Copper Bare	Teal	8	5.84 mm	0.23 in	1000 ft	304.8 m	Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.08
LCSC	Piece	1	$ 0.52

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 1000.0' (304.8m)
