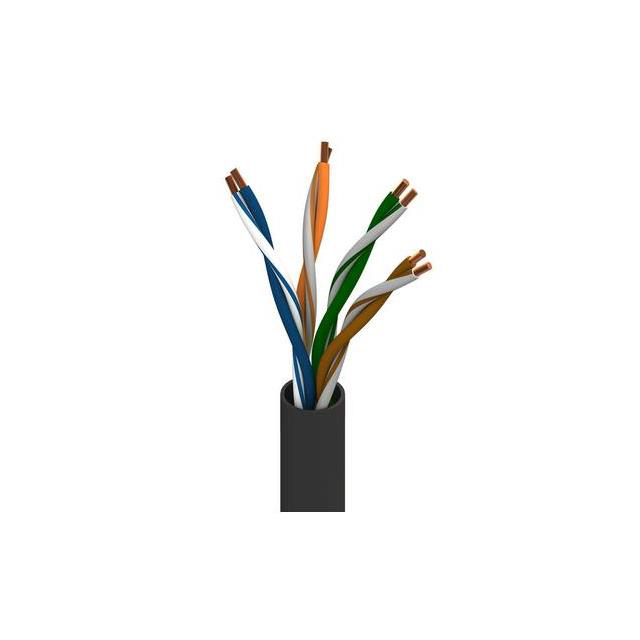

Specification	7923A 1NH1000

Cable Type	Multi-Pair, Cat5e
Conductor Arrangement	Twisted
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Diameter	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Teal
Length	1000 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Ratings	UL, CMR, Style
Usage	Network, Industrial
Voltage	300 V
Wire Gauge	24 AWG

7923A Series

Part	Jacket Color	Ratings	Cable Type	Conductor Strand	Jacket (Insulation) Diameter	Operating Temperature (Max)	Operating Temperature (Min)	Wire Gauge	Conductor Material	Usage	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Length	Jacket (Insulation) Material	Voltage	Conductor Insulation	Features
Belden Inc. 7923A 0061000	Blue	CMR Style UL	Cat5e Multi-Pair	Solid	0.23 in	75 °C	-40 °C	24 AWG	Bare Copper	Industrial Network	8	Twisted	4	1000 ft	Poly-Vinyl Chloride (PVC)	300 V	Polyolefin (PO)	Oil Resistant Rip Cord UV Resistant
Belden Inc. 7923A 0021000	Red	CMR Style UL	Cat5e Multi-Pair	Solid	0.23 in	75 °C	-40 °C	24 AWG	Bare Copper	Industrial Network	8	Twisted	4	1000 ft	Poly-Vinyl Chloride (PVC)	300 V	Polyolefin (PO)	Oil Resistant Rip Cord UV Resistant
Belden Inc. 7923A 0101000	Black	CMR Style UL	Cat5e Multi-Pair	Solid	0.23 in	75 °C	-40 °C	24 AWG	Bare Copper	Industrial Network	8	Twisted	4	1000 ft	Poly-Vinyl Chloride (PVC)	300 V	Polyolefin (PO)	Oil Resistant Rip Cord UV Resistant
Belden Inc. 7923A 1NH1000	Teal	CMR Style UL	Cat5e Multi-Pair	Solid	0.23 in	75 °C	-40 °C	24 AWG	Bare Copper	Industrial Network	8	Twisted	4	1000 ft	Poly-Vinyl Chloride (PVC)	300 V	Polyolefin (PO)	Oil Resistant Rip Cord UV Resistant
