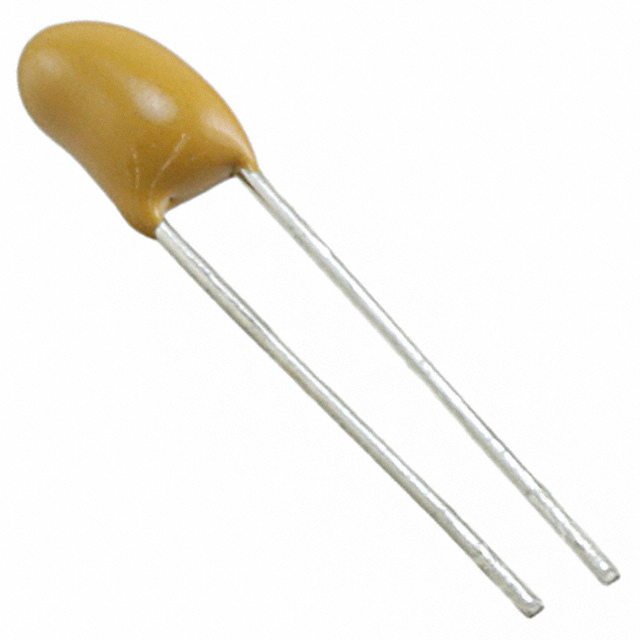

T350A684K035AS

Active

KEMET

CAP TANT SOLID 0.68UF 35V 10%( 4.5 X 7.1MM) RADIAL 2.54MM 125°C BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T350A684K035AS

T350A684K035AS

Active

KEMET

CAP TANT SOLID 0.68UF 35V 10%( 4.5 X 7.1MM) RADIAL 2.54MM 125°C BAG

Deep-Dive with AI

DocumentsDatasheet T350A684K035AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T350A684K035AS

Capacitance	680 nF
ESR (Equivalent Series Resistance)	10 Ohm
Features	General Purpose
Height - Seated (Max)	7.1 mm
Height - Seated (Max) [Max]	0.28 in
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.177 "
Size / Dimension [diameter]	4.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

T350A Series

Part	Mounting Type	Tolerance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lead Spacing	Lead Spacing	Manufacturer Size Code
KEMET T350A684K035AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	680 nF	Conformal Coated	0.28 in	7.1 mm	10 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104K035AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A685K006AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	6.8 ÁF	Conformal Coated	0.28 in	7.1 mm	8 Ohm	Radial	0.177 "	4.5 mm	6.3 V	0.1 in	2.54 mm	A
KEMET T350A154M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.15 ÁF	Conformal Coated	0.28 in	7.1 mm	21 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A334M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.33 µF	Conformal Coated	0.28 in	7.1 mm	15 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A224K035AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	0.22 µF	Conformal Coated	0.28 in	7.1 mm	17 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A154M035AS	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.15 ÁF	Conformal Coated	0.28 in	7.1 mm	21 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A105K035AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	1 µF	Conformal Coated	0.28 in	7.1 mm	8 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104K050AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	50 VDC	0.1 in	2.54 mm	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.43
