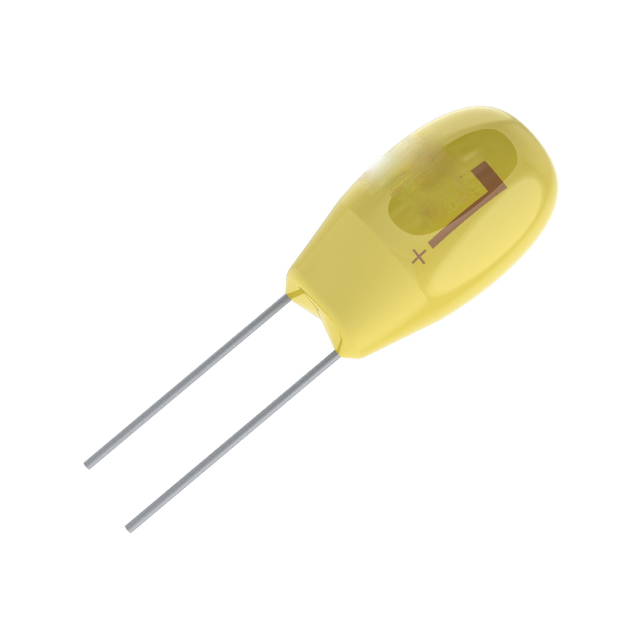

T350A104M035AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 20% +TOL, 20% -TOL, 0.1UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T350A104M035AT Spec +2

T350A104M035AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 20% +TOL, 20% -TOL, 0.1UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

DocumentsDatasheet T350A104M035AT Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T350A104M035AT

Capacitance	100000 pF
ESR (Equivalent Series Resistance)	26 Ohm
Features	General Purpose
Height - Seated (Max)	7.1 mm
Height - Seated (Max) [Max]	0.28 in
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.177 "
Size / Dimension [diameter]	4.5 mm
Tolerance	20 %
Type	Conformal Coated
Voltage - Rated	35 V

T350A Series

Part	Mounting Type	Tolerance	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lead Spacing	Lead Spacing	Manufacturer Size Code
KEMET T350A684K035AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	680 nF	Conformal Coated	0.28 in	7.1 mm	10 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104K035AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A685K006AS	Through Hole	10 %	General Purpose	-55 °C	125 °C	6.8 ÁF	Conformal Coated	0.28 in	7.1 mm	8 Ohm	Radial	0.177 "	4.5 mm	6.3 V	0.1 in	2.54 mm	A
KEMET T350A154M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.15 ÁF	Conformal Coated	0.28 in	7.1 mm	21 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A334M035AT	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.33 µF	Conformal Coated	0.28 in	7.1 mm	15 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A224K035AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	0.22 µF	Conformal Coated	0.28 in	7.1 mm	17 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A154M035AS	Through Hole	20 %	General Purpose	-55 °C	125 °C	0.15 ÁF	Conformal Coated	0.28 in	7.1 mm	21 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A105K035AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	1 µF	Conformal Coated	0.28 in	7.1 mm	8 Ohm	Radial	0.177 "	4.5 mm	35 V	0.1 in	2.54 mm	A
KEMET T350A104K050AT	Through Hole	10 %	General Purpose	-55 °C	125 °C	100000 pF	Conformal Coated	0.28 in	7.1 mm	26 Ohm	Radial	0.177 "	4.5 mm	50 VDC	0.1 in	2.54 mm	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.09
		10	$ 1.61
		50	$ 1.48
		100	$ 1.23
		500	$ 1.08
Newark	Each	1	$ 2.54
		10	$ 1.93
		25	$ 1.80
		50	$ 1.66
		100	$ 1.46
		500	$ 1.29
		1000	$ 1.28
		2500	$ 1.18

Description

General part information

T350A Series

0.1 µF Conformal Coated Tantalum Capacitors 35 V Radial 26Ohm @ 100kHz
