5500FE 008500
ActiveBelden Inc.
MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.324 MM², 500 FT, 152.4 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5500FE 008500
ActiveBelden Inc.

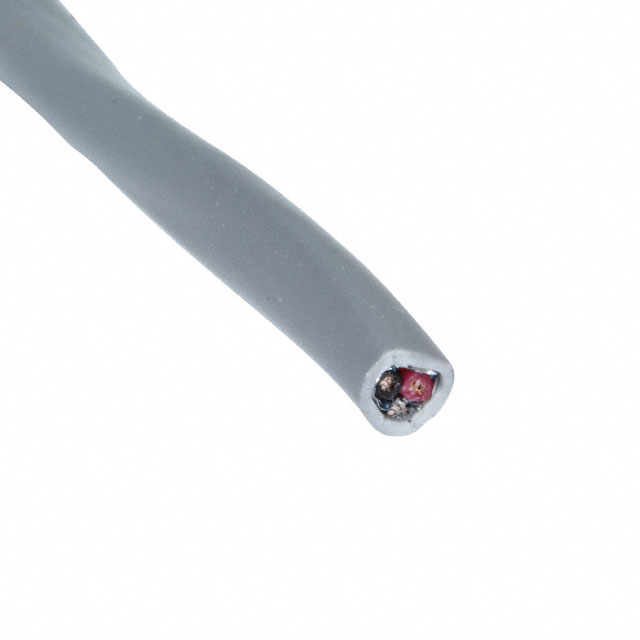

MULTICONDUCTOR CABLE, SECURITY AUDIO, SHIELDED, 2 CONDUCTOR, 22 AWG, 0.324 MM², 500 FT, 152.4 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500FE 008500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.2 mm |
| Jacket (Insulation) Diameter [diameter] | 0.126 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 2 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.58 | |
| 2 | $ 29.11 | |||
| 3 | $ 28.29 | |||
| 5 | $ 27.27 | |||
| 7 | $ 26.62 | |||
| 10 | $ 25.95 | |||
| 25 | $ 24.28 | |||
| 50 | $ 23.08 | |||
| 100 | $ 21.92 | |||
| Spool | 1 | $ 122.20 | ||
| 3 | $ 113.05 | |||
| 5 | $ 109.13 | |||
| 7 | $ 106.52 | |||
Description
General part information
5500FE Series
2 Conductor Multi-Conductor Cable Gray 22 AWG Foil 100.0' (30.5m)
