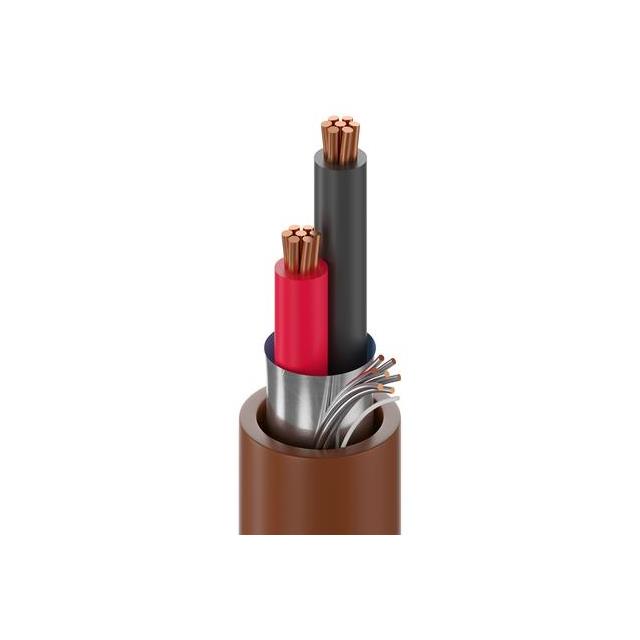

Specification	5500FE 009U1000

Cable Type	Conductor, Multi
Conductor Insulation	Polypropylene (PP)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.126 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.017 in
Jacket Color	White
Length	1000 ft
Number of Conductors	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, CMR, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

5500FE Series

Part	Jacket (Insulation) Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Insulation	Length	Voltage	Conductor Material	Cable Type	Shield Type	Number of Conductors	Usage	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Wire Gauge	Conductor Strand Gauge	Conductor Strand Count	Features	Jacket Color	Ratings	Shield Coverage	Shield Material	Length
Belden Inc. 5500FE 009U1000	0.017 in	-20 °C	75 °C	Polypropylene (PP)	1000 ft	300 V	Copper Tinned	Conductor Multi	Foil	2	Security Sound	Poly-Vinyl Chloride (PVC) Riser	0.126 in	22 AWG	30	7 Strands	Drain Wire Rip Cord	White	CMR Style UL	100 %	Aluminum
Belden Inc. 5500FE 008500	0.017 in	-20 °C	75 °C	Polypropylene (PP)	50 ft 100 ft 500 ft		Bare Copper	Conductor Multi	Foil	2		Poly-Vinyl Chloride (PVC) Riser	0.126 in	22 AWG	30	7 Strands	Drain Wire Rip Cord	Gray		100 %	Aluminum	Enter Number of Feet in Order Quantity
