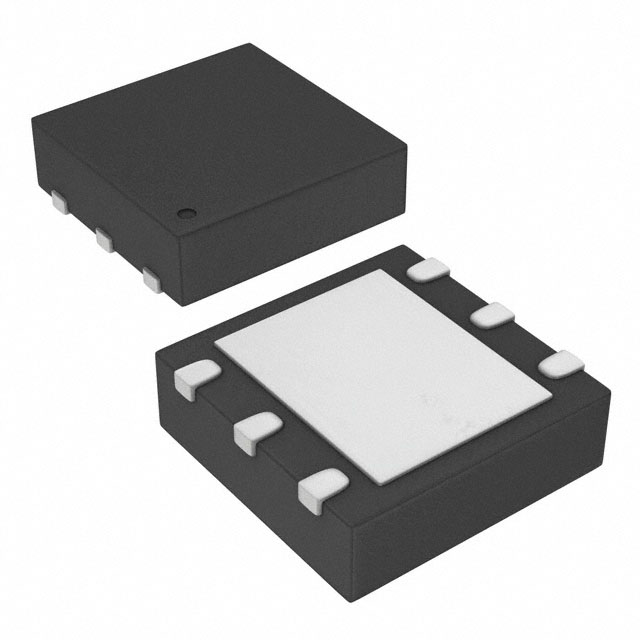

BQ26100DRPR
ActiveSHA-1/HMAC BASED SECURITY & AUTHENTICATION IC W/SDQ INTERFACE 6-VSON -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
BQ26100DRPR
ActiveSHA-1/HMAC BASED SECURITY & AUTHENTICATION IC W/SDQ INTERFACE 6-VSON -40 TO 85
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ26100DRPR | BQ26100 Series |
|---|---|---|
| Embedded | - | False |
| Function | Battery Authorization | Battery Authorization, Anti Tamper and Security |
| Interface | SDQ | SDQ |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Primary Attributes | - | Battery Authentication |
| Supplied Contents | - | Board(s), Cable(s) |
| Supplier Device Package | 6-VSON (3x3) | 6-VSON (3x3) |
| Type | - | Interface |
| Utilized IC / Part | - | BQ26100 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 1.38 | |
| 1 | $ 1.38 | |||
| 1 | $ 1.38 | |||
| 430 | $ 0.70 | |||
| 3000 | $ 0.67 | |||
| 3000 | $ 0.67 | |||
| 6000 | $ 0.66 | |||
| 6000 | $ 0.66 | |||
| 9000 | $ 0.65 | |||
| 9000 | $ 0.67 | |||
| 15000 | $ 0.64 | |||
| 15000 | $ 0.64 | |||
| Digikey | Cut Tape (CT) | 1 | $ 2.31 | |
| Digi-Reel® | 1 | $ 2.31 | ||
| Tape & Reel (TR) | 3000 | $ 0.69 | ||
| 6000 | $ 0.65 | |||
| 9000 | $ 0.63 | |||
| 15000 | $ 0.61 | |||
| Mouser Electronics | N/A | 1 | $ 1.38 | |
| 1 | $ 1.38 | |||
| 100 | $ 1.13 | |||
| 100 | $ 1.13 | |||
| 500 | $ 0.93 | |||
| 500 | $ 0.93 | |||
| 1000 | $ 0.73 | |||
| 1000 | $ 0.73 | |||
| 3000 | $ 0.64 | |||
| 3000 | $ 0.64 | |||
| 6000 | $ 0.64 | |||
| 6000 | $ 0.64 | |||
| 9000 | $ 0.63 | |||
| 9000 | $ 0.63 | |||
| Rochester Electronics | N/A | 1 | $ 0.67 | |
| 25 | $ 0.66 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.57 | |||
| Texas Instruments | LARGE T&R | 1 | $ 1.20 | |
| 100 | $ 0.92 | |||
| 250 | $ 0.68 | |||
| 1000 | $ 0.48 | |||
| Verical | N/A | 475 | $ 0.79 | |
| 500 | $ 0.76 | |||
| 1000 | $ 0.71 | |||
BQ26100 Series
SHA-1/HMAC Based Security & Authentication IC w/SDQ Interface
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Function | Interface | Package / Case | Type | Supplied Contents | Primary Attributes | Embedded | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ26100DRPR | Surface Mount | 85 °C | -40 °C | 6-VSON (3x3) | Battery Authorization | SDQ | 6-VDFN Exposed Pad | |||||
Texas Instruments BQ26100EVM | Anti Tamper and Security | Interface | Board(s), Cable(s) | Battery Authentication | BQ26100 |
Description
General part information
BQ26100 Series
The bq26100 device provides a method to authenticate battery packs, ensuring that only packs manufactured by authorized sub-contractors are used in the end application. The security is achieved using the SHA-1 hash function inside the widely adopted keyed-hash message authentication code (HMAC) construction. A unique 128-bit key is stored in each bq26100 device, allowing the host to authenticate each pack.
The bq26100 device communicates to the system over a simple one-wire bi-directional serial interface. The 5-kbits/s SDQ bus interface reduces communications overhead in the external microcontroller. The bq26100 device also derives power over the SDQ bus line via an external capacitor.
The bq26100 device provides a method to authenticate battery packs, ensuring that only packs manufactured by authorized sub-contractors are used in the end application. The security is achieved using the SHA-1 hash function inside the widely adopted keyed-hash message authentication code (HMAC) construction. A unique 128-bit key is stored in each bq26100 device, allowing the host to authenticate each pack.
