BQ26100EVM
ActiveEVAL MODULE FOR BQ26100
Deep-Dive with AI
Search across all available documentation for this part.
BQ26100EVM
ActiveEVAL MODULE FOR BQ26100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ26100EVM | BQ26100 Series |
|---|---|---|
| Embedded | False | False |
| Function | Anti Tamper and Security | Battery Authorization, Anti Tamper and Security |
| Interface | - | SDQ |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 6-VDFN Exposed Pad |
| Primary Attributes | Battery Authentication | Battery Authentication |

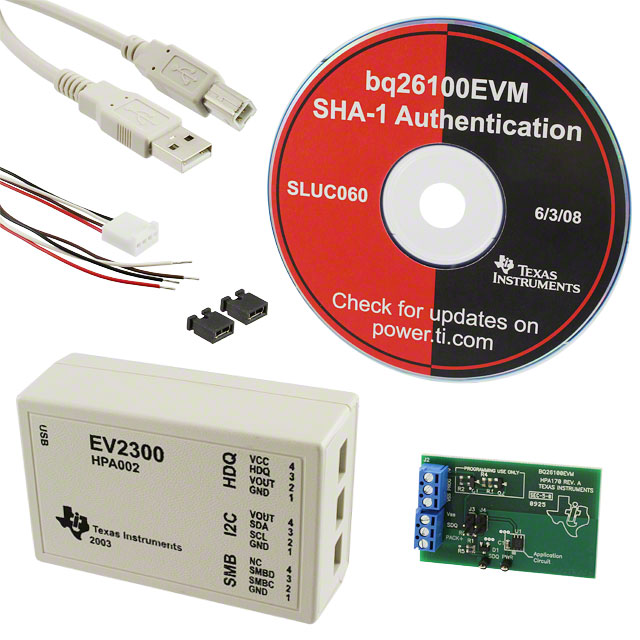

| Supplied Contents | Board(s), Cable(s) | Board(s), Cable(s) |
| Supplier Device Package | - | 6-VSON (3x3) |
| Type | Interface | Interface |
| Utilized IC / Part | BQ26100 | BQ26100 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
BQ26100 Series
SHA-1/HMAC Based Security & Authentication IC w/SDQ Interface
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Function | Interface | Package / Case | Type | Supplied Contents | Primary Attributes | Embedded | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ26100DRPR | Surface Mount | 85 °C | -40 °C | 6-VSON (3x3) | Battery Authorization | SDQ | 6-VDFN Exposed Pad | |||||
Texas Instruments BQ26100EVM | Anti Tamper and Security | Interface | Board(s), Cable(s) | Battery Authentication | BQ26100 |
Description
General part information
BQ26100 Series
The bq26100 device provides a method to authenticate battery packs, ensuring that only packs manufactured by authorized sub-contractors are used in the end application. The security is achieved using the SHA-1 hash function inside the widely adopted keyed-hash message authentication code (HMAC) construction. A unique 128-bit key is stored in each bq26100 device, allowing the host to authenticate each pack.
The bq26100 device communicates to the system over a simple one-wire bi-directional serial interface. The 5-kbits/s SDQ bus interface reduces communications overhead in the external microcontroller. The bq26100 device also derives power over the SDQ bus line via an external capacitor.
The bq26100 device provides a method to authenticate battery packs, ensuring that only packs manufactured by authorized sub-contractors are used in the end application. The security is achieved using the SHA-1 hash function inside the widely adopted keyed-hash message authentication code (HMAC) construction. A unique 128-bit key is stored in each bq26100 device, allowing the host to authenticate each pack.
