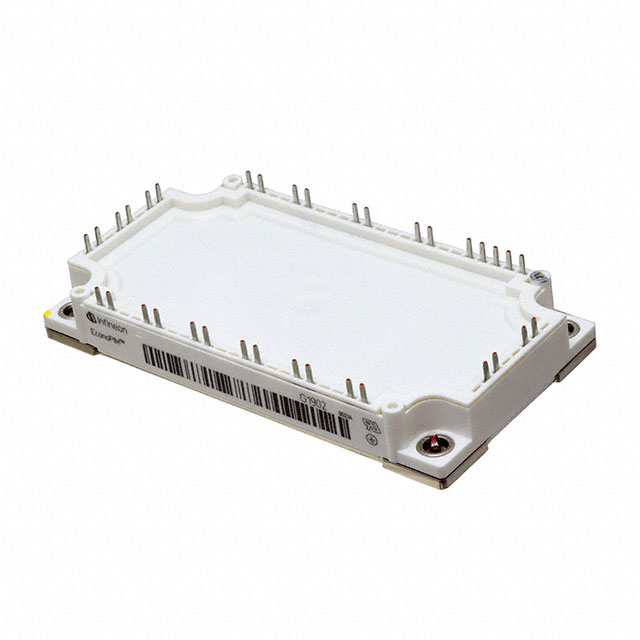

FP40R12KE3GBOSA1

Active

Infineon Technologies

THE FP40R12KE3G IS A 1200 V, 40 A PIM THREE PHASE INPUT RECTIFIER IGBT MODULE

Search across all available documentation for this part.

Active

Infineon Technologies

THE FP40R12KE3G IS A 1200 V, 40 A PIM THREE PHASE INPUT RECTIFIER IGBT MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	FP40R12KE3GBOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	55 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	2.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	210 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Vce(on) (Max) @ Vge, Ic	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Power - Max [Max]	Input	Input Capacitance (Cies) @ Vce	Supplier Device Package	IGBT Type
Infineon Technologies FP40R12KT3BPSA1	2.3 V	Three Phase Inverter	-40 °C	125 ¯C	5 mA	55 A		1200 V	Module	Chassis Mount	105 W	Three Phase Bridge Rectifier	2.5 nF	AG-ECONO2-8
Infineon Technologies FP40R12KE3GBOSA1	2.3 V	Three Phase Inverter	-40 °C	125 °C	1 mA	55 A		1200 V	Module	Chassis Mount	210 W	Standard	2.5 nF	Module	Trench Field Stop

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EconoPIM™ 31200 V, 40 A three phase PIMIGBT modulewith IGBT3 and NTC. Also available as fast switching device:FP40R12KT3G
