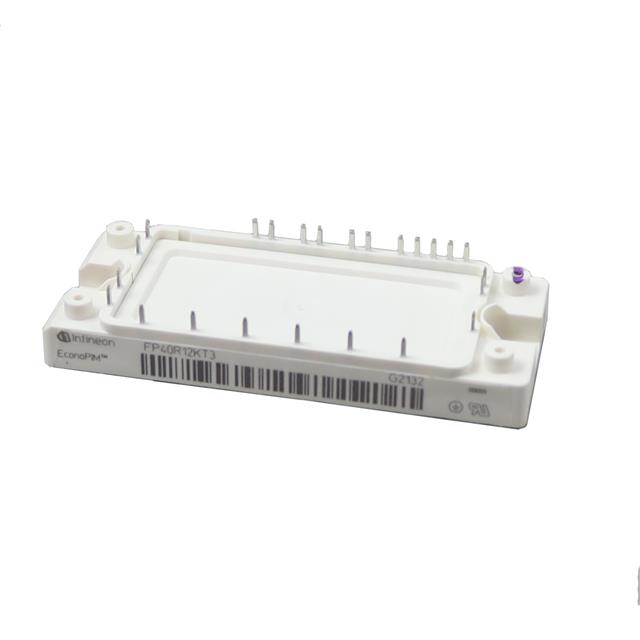

FP40R12KT3BPSA1

Active

Infineon Technologies

THE FP40R12KT3 IS A PIM THREE PHASE INPUT RECTIFIER IGBT3 - T3 MODULE IN A ECONOPIM™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 40 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FP40R12KT3BPSA1

Active

Infineon Technologies

THE FP40R12KT3 IS A PIM THREE PHASE INPUT RECTIFIER IGBT3 - T3 MODULE IN A ECONOPIM™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 40 A.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP40R12KT3BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	55 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	2.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	105 W
Supplier Device Package	AG-ECONO2-8
Vce(on) (Max) @ Vge, Ic	2.3 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP40R12 Series

Part	Vce(on) (Max) @ Vge, Ic	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Power - Max [Max]	Input	Input Capacitance (Cies) @ Vce	Supplier Device Package	IGBT Type
Infineon Technologies FP40R12KT3BPSA1	2.3 V	Three Phase Inverter	-40 °C	125 ¯C	5 mA	55 A		1200 V	Module	Chassis Mount	105 W	Three Phase Bridge Rectifier	2.5 nF	AG-ECONO2-8
Infineon Technologies FP40R12KE3GBOSA1	2.3 V	Three Phase Inverter	-40 °C	125 °C	1 mA	55 A		1200 V	Module	Chassis Mount	210 W	Standard	2.5 nF	Module	Trench Field Stop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 108.15
Newark	Each	1	$ 87.01
		5	$ 78.23
		10	$ 69.45

Description

General part information

FP40R12 Series

EconoPIM™ 21200 V, 40 A three phase PIMIGBT modulewith fast TRENCHSTOP™ IGBT3 and NTC. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. They are available in Econo 2 and Econo 3 housing and also available with Solder- orPressFITpins.
