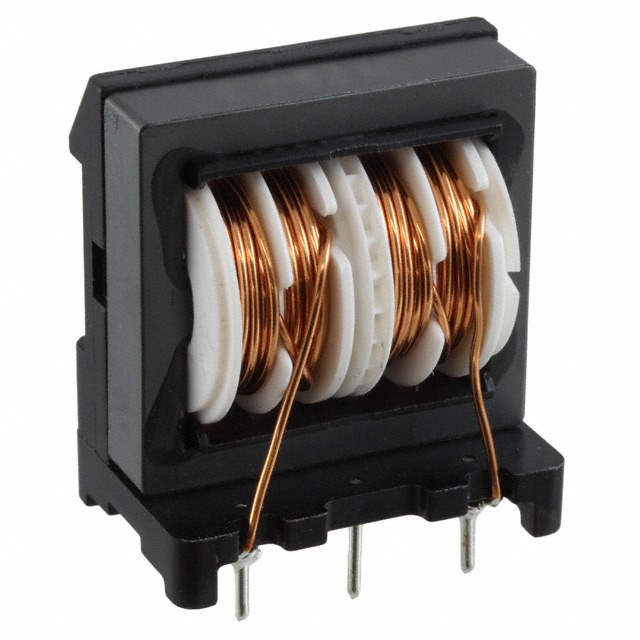

SS35V-40033

Active

KEMET

SINGLE PHASE EMI FILTER,

Search across all available documentation for this part.

Active

KEMET

SINGLE PHASE EMI FILTER,

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Filter Type	Current Rating (Max) [Max]	Number of Lines	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
KEMET SS35V-40033	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	4 A	2	Through Hole	1.614 in	41 mm	3.3 mH	6 Leads	Vertical	80 mOhm	120 °C	-25 °C
KEMET SS35V-35047	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	3.5 A	2	Through Hole	1.614 in	41 mm	4.7 mH	6 Leads	Vertical	100 mOhm	120 °C	-25 °C
KEMET SS35V-30082	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	3 A	2	Through Hole	1.614 in	41 mm	8.2 mH	6 Leads	Vertical	150 mOhm	120 °C	-25 °C
KEMET SS35V-15300	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	1.5 A	2	Through Hole	1.614 in	41 mm	30 mH	6 Leads	Vertical	480 mOhm	120 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 4A DCR 80mOhm
