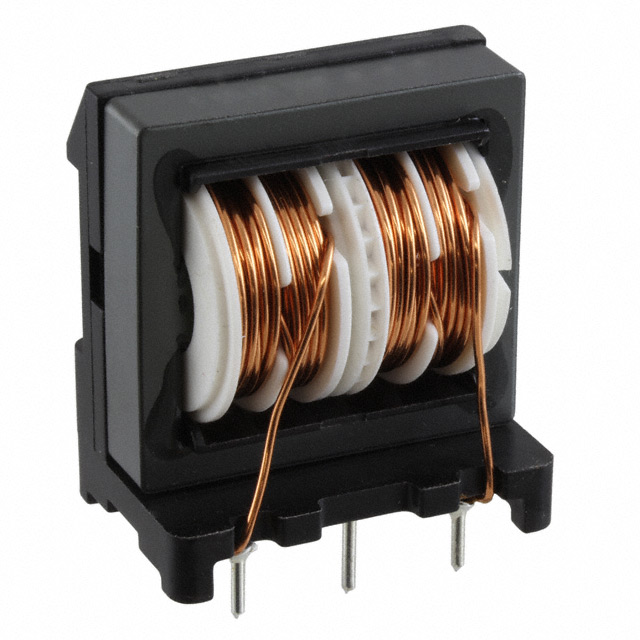

SS35V-30082

Active

KEMET

V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Filter Type	Current Rating (Max) [Max]	Number of Lines	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Inductance @ Frequency	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
KEMET SS35V-40033	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	4 A	2	Through Hole	1.614 in	41 mm	3.3 mH	6 Leads	Vertical	80 mOhm	120 °C	-25 °C
KEMET SS35V-35047	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	3.5 A	2	Through Hole	1.614 in	41 mm	4.7 mH	6 Leads	Vertical	100 mOhm	120 °C	-25 °C
KEMET SS35V-30082	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	3 A	2	Through Hole	1.614 in	41 mm	8.2 mH	6 Leads	Vertical	150 mOhm	120 °C	-25 °C
KEMET SS35V-15300	250 V	1.457 in	1.043 "	37 mm	26.5 mm	Power Line	1.5 A	2	Through Hole	1.614 in	41 mm	30 mH	6 Leads	Vertical	480 mOhm	120 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8.2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 3A DCR 150mOhm
