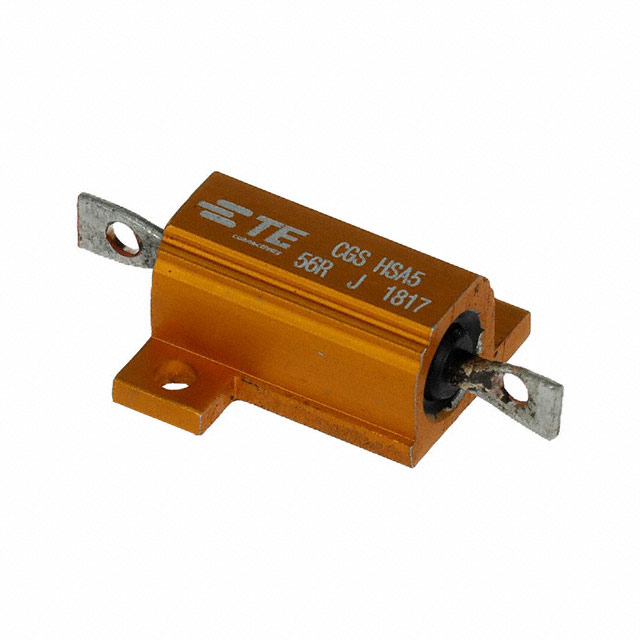

HSA556RJ
ActiveTE Connectivity Passive Product
RES CHAS MNT 56 OHM 5% 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSA556RJ
ActiveTE Connectivity Passive Product
RES CHAS MNT 56 OHM 5% 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSA556RJ |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 10 W |
| Resistance | 56 Ohms |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.27 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.43 | |||
Description
General part information
HSA55 Series
56 Ohms ±5% 10W Wirewound Chassis Mount Resistor
