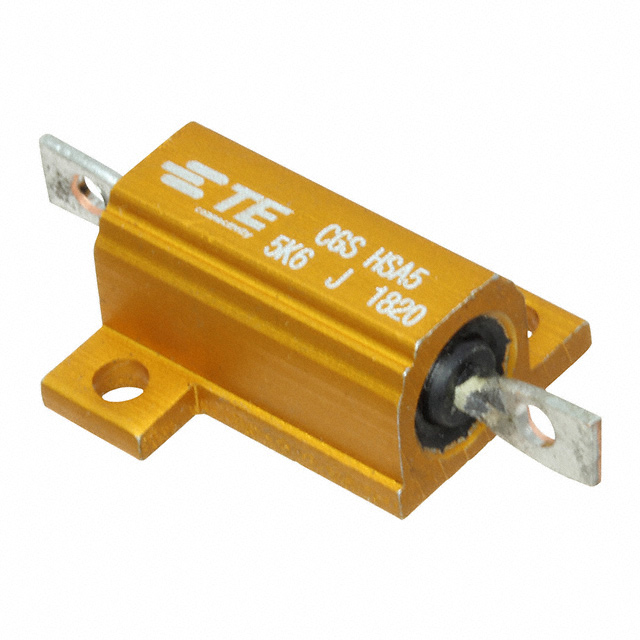

HSA55K6J
ActiveTE Connectivity Passive Product
HSA5 5K6 5%
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSA55K6J
ActiveTE Connectivity Passive Product
HSA5 5K6 5%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSA55K6J |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Power (Watts) | 10 W |
| Resistance | 5.6 kOhms |
| Size / Dimension [x] | 17 mm |
| Size / Dimension [x] | 0.669 " |
| Size / Dimension [y] | 17 mm |
| Size / Dimension [y] | 0.669 in |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.27 | |
| 10 | $ 1.92 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.74 | |||
| 100 | $ 1.43 | |||
Description
General part information
HSA55 Series
5.6 kOhms ±5% 10W Wirewound Chassis Mount Resistor
