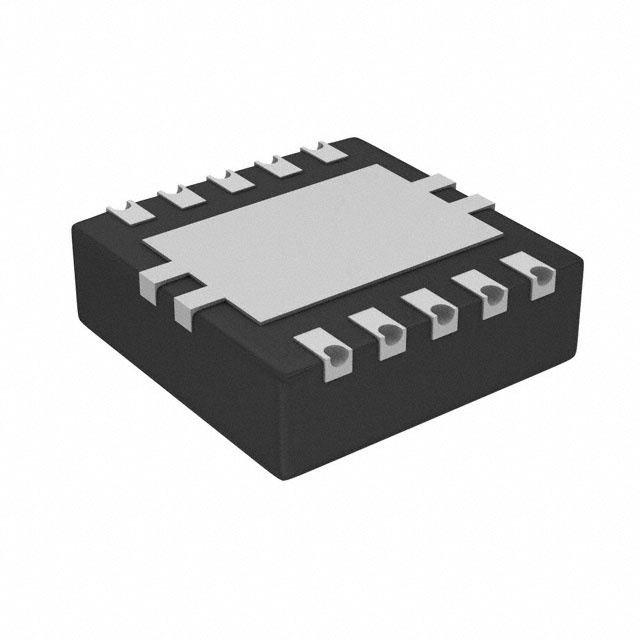

TPS61029QDPNRQ1
Active0.9-V TO 5.5-V INPUT RANGE, 1.8-A BOOST CONVERTER, AEC-Q100 QUALIFIED
Deep-Dive with AI
Search across all available documentation for this part.

TPS61029QDPNRQ1
Active0.9-V TO 5.5-V INPUT RANGE, 1.8-A BOOST CONVERTER, AEC-Q100 QUALIFIED
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | TPS61029QDPNRQ1 | TPS61029 Series |
---|---|---|
Current - Output | 1.8 A | 1.8 A |
Frequency - Switching | 600 kHz | 600 kHz |
Function | Step-Up | Step-Up |
Grade | Automotive | Automotive |
Mounting Type | Surface Mount | Surface Mount |
Number of Outputs | 1 | 1 |
Operating Temperature [Max] | 125 ¯C | 85 - 125 ¯C |
Operating Temperature [Min] | -40 °C | -40 °C |
Output Configuration | Positive | Positive |
Output Type | Adjustable | Adjustable |
Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
Qualification | AEC-Q100 | AEC-Q100 |
Supplier Device Package | 10-VSON (3x3) | 10-VSON (3x3) |
Synchronous Rectifier | True | True |
Topology | Boost | Boost |
Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
Voltage - Input (Min) [Min] | 0.9 V | 0.9 V |
Voltage - Output (Max) [Max] | 5.5 V | 5.5 V |
Voltage - Output (Min/Fixed) | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS61029 Series
0.9-V to 5.5-V input range, 1.8-A boost converter, AEC-Q100 qualified
Part | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Output Type | Qualification | Voltage - Input (Min) [Min] | Supplier Device Package | Output Configuration | Frequency - Switching | Number of Outputs | Voltage - Input (Max) [Max] | Function | Mounting Type | Topology | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Current - Output | Synchronous Rectifier |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS61029QDPNRQ1The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package.
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package. | 1.8 V | 5.5 V | Adjustable | AEC-Q100 | 0.9 V | 10-VSON (3x3) | Positive | 600 kHz | 1 | 5.5 V | Step-Up | Surface Mount | Boost | 10-VFDFN Exposed Pad | 125 ¯C | -40 °C | Automotive | 1.8 A | |
Texas Instruments TPS61029DRCTThe TPS6102x family of devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline battery, and discharge it down to 0.9 V. The device can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed-frequency, pulse width modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters the power save mode to maintain a high efficiency over a wide-load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA, or 1800 mA depending on the version of the device.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD package measuring 3 mm x 3 mm (DRC).
The TPS6102x family of devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline battery, and discharge it down to 0.9 V. The device can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed-frequency, pulse width modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters the power save mode to maintain a high efficiency over a wide-load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA, or 1800 mA depending on the version of the device.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD package measuring 3 mm x 3 mm (DRC). | 1.8 V | 5.5 V | Adjustable | 0.9 V | 10-VSON (3x3) | Positive | 600 kHz | 1 | 5.5 V | Step-Up | Surface Mount | Boost | 10-VFDFN Exposed Pad | 85 °C | -40 °C | 1.8 A | |||
Texas Instruments TPS61029DRCTG4Boost Switching Regulator IC Positive Adjustable 1.8V 1 Output 1.8A (Switch) 10-VFDFN Exposed Pad | 1.8 V | 5.5 V | Adjustable | 0.9 V | 10-VSON (3x3) | Positive | 600 kHz | 1 | 5.5 V | Step-Up | Surface Mount | Boost | 10-VFDFN Exposed Pad | 85 °C | -40 °C | 1.8 A | |||
Texas Instruments TPS61029QDRCRQ1The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package.
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package. | 1.8 V | 5.5 V | Adjustable | AEC-Q100 | 0.9 V | 10-VSON (3x3) | Positive | 600 kHz | 1 | 5.5 V | Step-Up | Surface Mount | Boost | 10-VFDFN Exposed Pad | 125 ¯C | -40 °C | Automotive | 1.8 A |
Description
General part information
TPS61029 Series
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package.
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters thePower Save Modeto maintain a high efficiency over a wide load current range. ThePower Save Modecan be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
