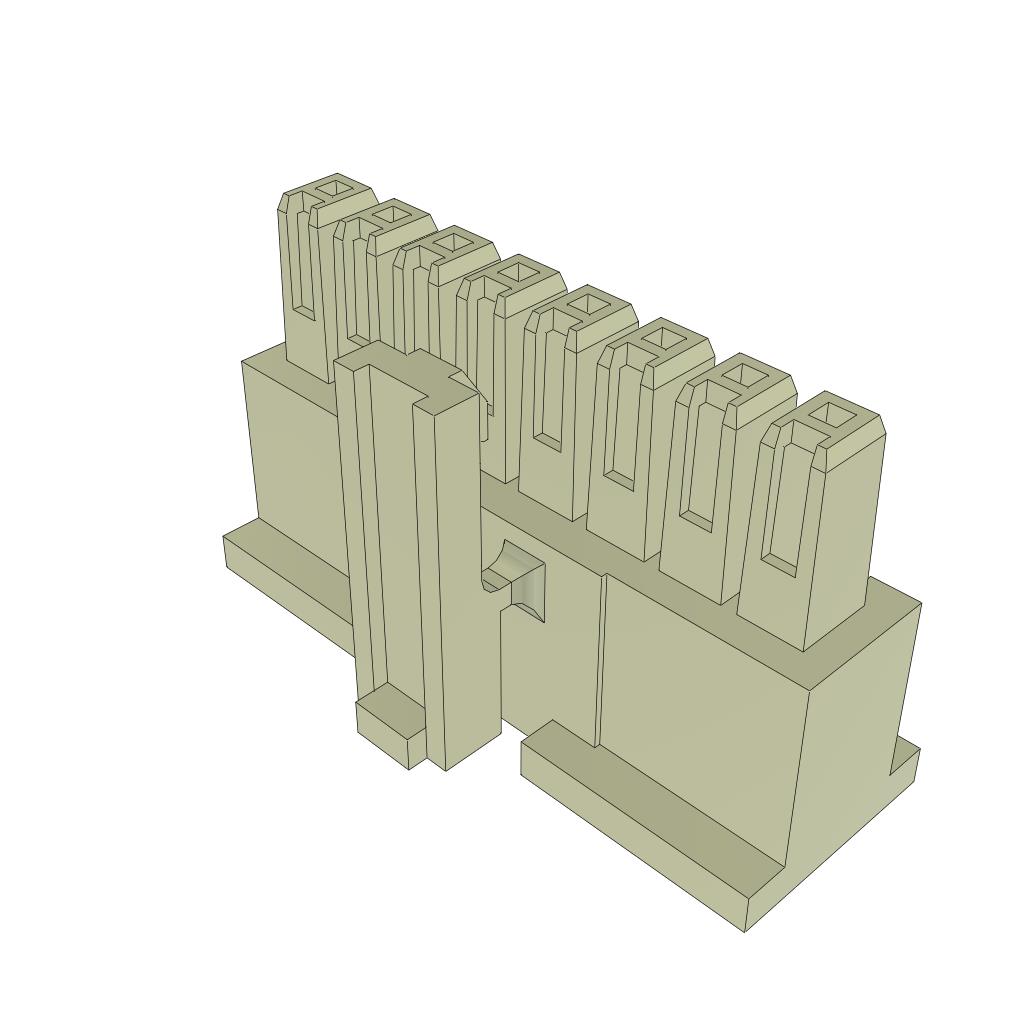

IPD1-08-S
ActiveSamtec Inc.
CONN HOUSING F 8 POS 2.54MM CRIMP ST CABLE MOUNT TUBE
Deep-Dive with AI
Search across all available documentation for this part.
IPD1-08-S
ActiveSamtec Inc.
CONN HOUSING F 8 POS 2.54MM CRIMP ST CABLE MOUNT TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPD1-08-S |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
IPD1-08 Series
| Part | Contact Termination | Connector Type | Contact Type | Number of Rows | Number of Positions | Note | Color | Insulation Material | Fastening Type | Mounting Type | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Crimp | Receptacle | Female Socket | 1 | 8 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | ||||
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Polarizing Key | 16 | |
Samtec Inc. | Crimp | Receptacle | Female Socket | 1 | 8 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Polarizing Key | |||
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Guide Post | 16 | |
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Polarizing Key | 16 | |
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Polarizing Key | 16 | |
Samtec Inc. | Crimp | Receptacle | Female Socket | 1 | 8 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | ||||
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Guide Post | 16 | |
Samtec Inc. | Crimp | Receptacle | Female Socket | 2 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | 16 | ||
Samtec Inc. | Crimp | Receptacle | Female Socket | 1 | 8 | Contacts Not Included | White | Polyamide (PA66) Nylon 6/6 | Latch Lock | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Polarizing Key |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.03 | |
Description
General part information
IPD1-08 Series
8 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
