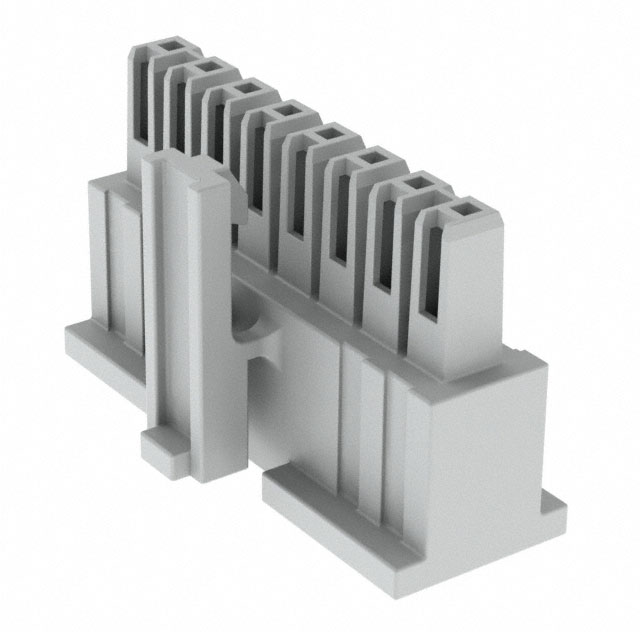

IPD1-08-S-K

Active

Samtec Inc.

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPD1 Series Other Related Documents 03 Datasheet +1

IPD1-08-S-K

Active

Samtec Inc.

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

DocumentsIPD1 Series Other Related Documents 03 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPD1-08-S-K

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

IPD1-08 Series

Part	Contact Termination	Connector Type	Contact Type	Number of Rows	Number of Positions	Note	Color	Insulation Material	Fastening Type	Mounting Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Features	Number of Positions
Samtec Inc. IPD1-08-S	Crimp	Receptacle	Female Socket	1	8	Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in
Samtec Inc. IPD1-08-D-K	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm	Polarizing Key	16
Samtec Inc. IPD1-08-S-K	Crimp	Receptacle	Female Socket	1	8	Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in			Polarizing Key
Samtec Inc. IPD1-08-D-GP-R	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm	Guide Post	16
Samtec Inc. IPD1-08-D-P-M	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm	Polarizing Key	16
Samtec Inc. IPD1-08-D-K-R	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm	Polarizing Key	16
Samtec Inc. IPD1-08-S-R	Crimp	Receptacle	Female Socket	1	8	Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in
Samtec Inc. IPD1-08-D-GP	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm	Guide Post	16
Samtec Inc. IPD1-08-D-R	Crimp	Receptacle	Female Socket	2		Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in	0.1 in	2.54 mm		16
Samtec Inc. IPD1-08-S-K-R	Crimp	Receptacle	Female Socket	1	8	Contacts Not Included	White	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	2.54 mm	0.1 in			Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38
		10	$ 1.05
		25	$ 0.95
		50	$ 0.87
		100	$ 0.81
		250	$ 0.73
		500	$ 0.68
		1000	$ 0.63
		2500	$ 0.57
