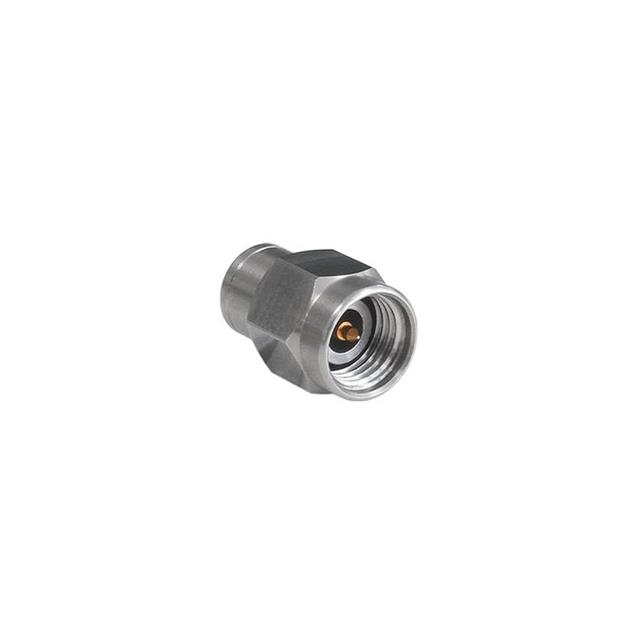

RFTERM292J1W
ActiveBULGIN LIMITED
RF TERMINATOR, 2.92MM TERMINATOR JACK, 40 GHZ, 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
RFTERM292J1W
ActiveBULGIN LIMITED
RF TERMINATOR, 2.92MM TERMINATOR JACK, 40 GHZ, 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFTERM292J1W |
|---|---|
| Body Material | Stainless Steel |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polyetherimide (PEI), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
RFTERM Series
| Part | Body Material | Connector Type | Mounting Type | Impedance | Contact Material | Connector Style | Frequency - Max [Max] | Dielectric Material | Connector Style | Connector Style | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Stainless Steel | Female Socket Jack | Cap Free Hanging | 50 Ohms | Beryllium Copper | 2.92 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Male Pin Plug | Cap Free Hanging | 50 Ohms | Beryllium Copper | 2.92 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Male Pin Plug | Cap Free Hanging | 50 Ohms | Beryllium Copper | 18 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | SMA | |||
BULGIN LIMITED | Stainless Steel | Female Socket Jack | Cap Free Hanging | 50 Ohms | Beryllium Copper | 3.5 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Female Socket Jack | Cap Free Hanging | 50 Ohms | Beryllium Copper | 2.92 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Female Socket Jack | Cap Free Hanging | 50 Ohms | Beryllium Copper | 18 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | SMA | |||
BULGIN LIMITED | Stainless Steel | Male Pin Plug | Cap Free Hanging | 50 Ohms | Beryllium Copper | 3.5 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Male Pin Plug | Cap Free Hanging | 50 Ohms | Beryllium Copper | 3.5 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | |||
BULGIN LIMITED | Stainless Steel | Male Pin Plug | Cap Free Hanging | 50 Ohms | Beryllium Copper | 2.4 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) | OS-50 | APC-2.4 | |
BULGIN LIMITED | Stainless Steel | Female Socket Jack | Cap Free Hanging | 50 Ohms | Beryllium Copper | 3.5 mm | 40 GHz | Polyetherimide (PEI) Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RFTERM Series
Terminator Coax Connector Jack, Female Socket 2.92mm 50 Ohms
