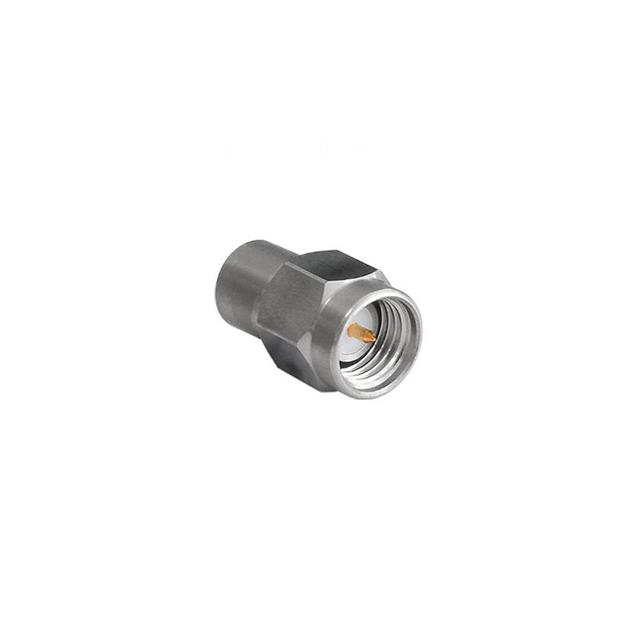

Specification	RFTERMSMAP2W

Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE), Polyetherimide (PEI)
Frequency - Max	18 GHz
Impedance	50 Ohm
Mounting Type	Cap, Free Hanging

RFTERM Series

Part	Body Material	Dielectric Material	Mounting Type	Connector Type	Frequency - Max	Contact Material	Impedance	Connector Plug Diameter	Connector Style
BULGIN LIMITED RFTERM292J05W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Female Socket Jack	40 Gbps	Beryllium Copper	50 Ohm	2.92 mm
BULGIN LIMITED RFTERMNJ2W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Female Socket Jack	18 GHz	Beryllium Copper	50 Ohm		N Type
BULGIN LIMITED RFTERM292P05W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Male Pin Plug	40 Gbps	Beryllium Copper	50 Ohm	2.92 mm
BULGIN LIMITED RFTERMSMAP2W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Male Pin Plug	18 GHz	Beryllium Copper	50 Ohm		SMA
BULGIN LIMITED RFTERM350J1W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Female Socket Jack	40 Gbps	Beryllium Copper	50 Ohm	3.5 mm
BULGIN LIMITED RFTERM292J1W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Female Socket Jack	40 Gbps	Beryllium Copper	50 Ohm	2.92 mm
BULGIN LIMITED RFTERMSMAJ2W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Female Socket Jack	18 GHz	Beryllium Copper	50 Ohm		SMA
BULGIN LIMITED RFTERM350P2W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Male Pin Plug	40 Gbps	Beryllium Copper	50 Ohm	3.5 mm
BULGIN LIMITED RFTERM350P1W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Male Pin Plug	40 Gbps	Beryllium Copper	50 Ohm	3.5 mm
BULGIN LIMITED RFTERM240P1W	Stainless Steel	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	Cap Free Hanging	Male Pin Plug	40 Gbps	Beryllium Copper	50 Ohm	2.4 mm	APC-2.4 OS-50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RFTERMSMAP2W | Datasheet

Datasheet
